WS2812 RGB LED 1 bis 24 Bit Module rund Entwicklerplatine

WS2812 RGB LED 1 bis 24 Bit Module rund Entwicklerplatine Development Board ESP8266 ESP32 Arduino

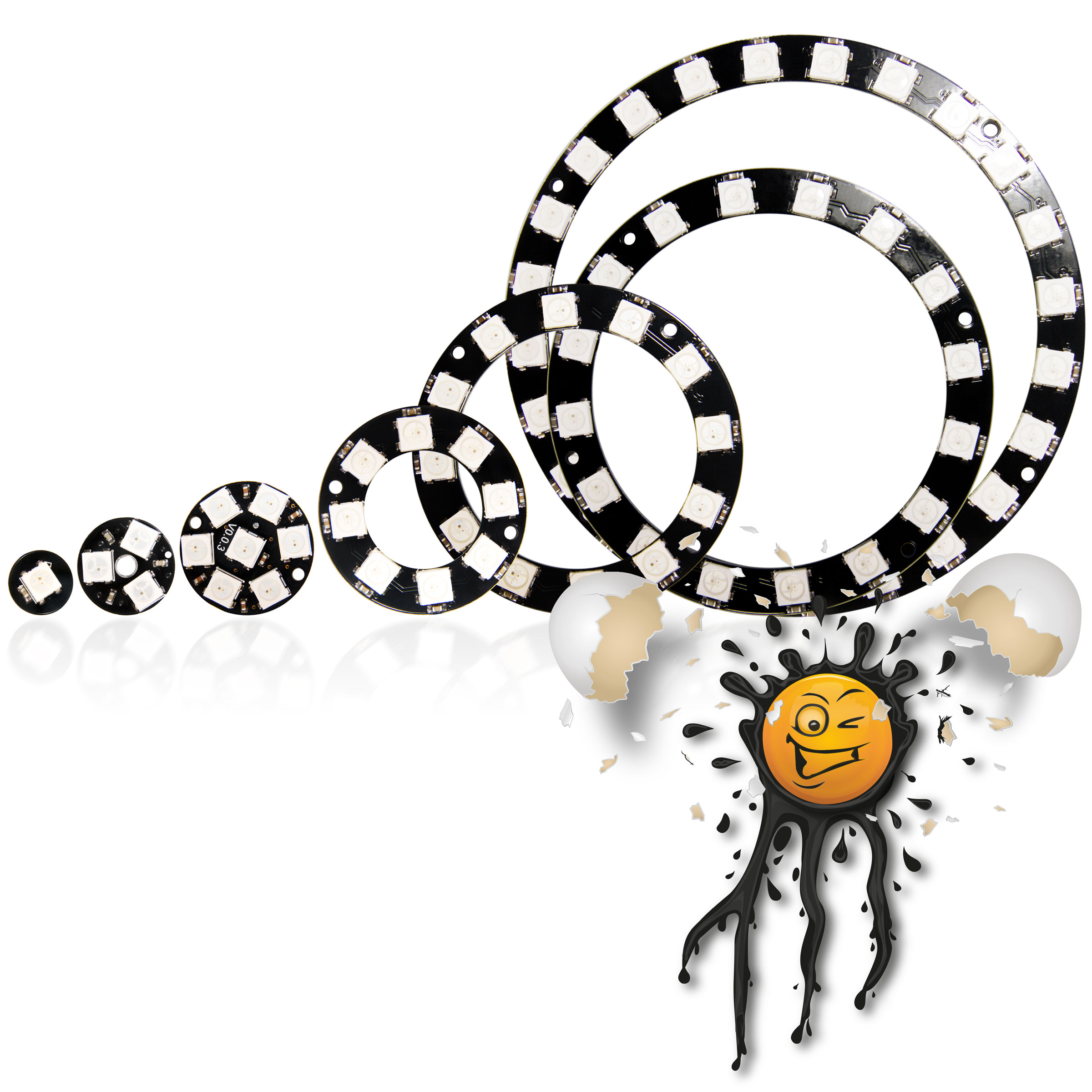

WS2812 RGB LED Module 1 3 7 8 12 16 24 bit versions © androegg

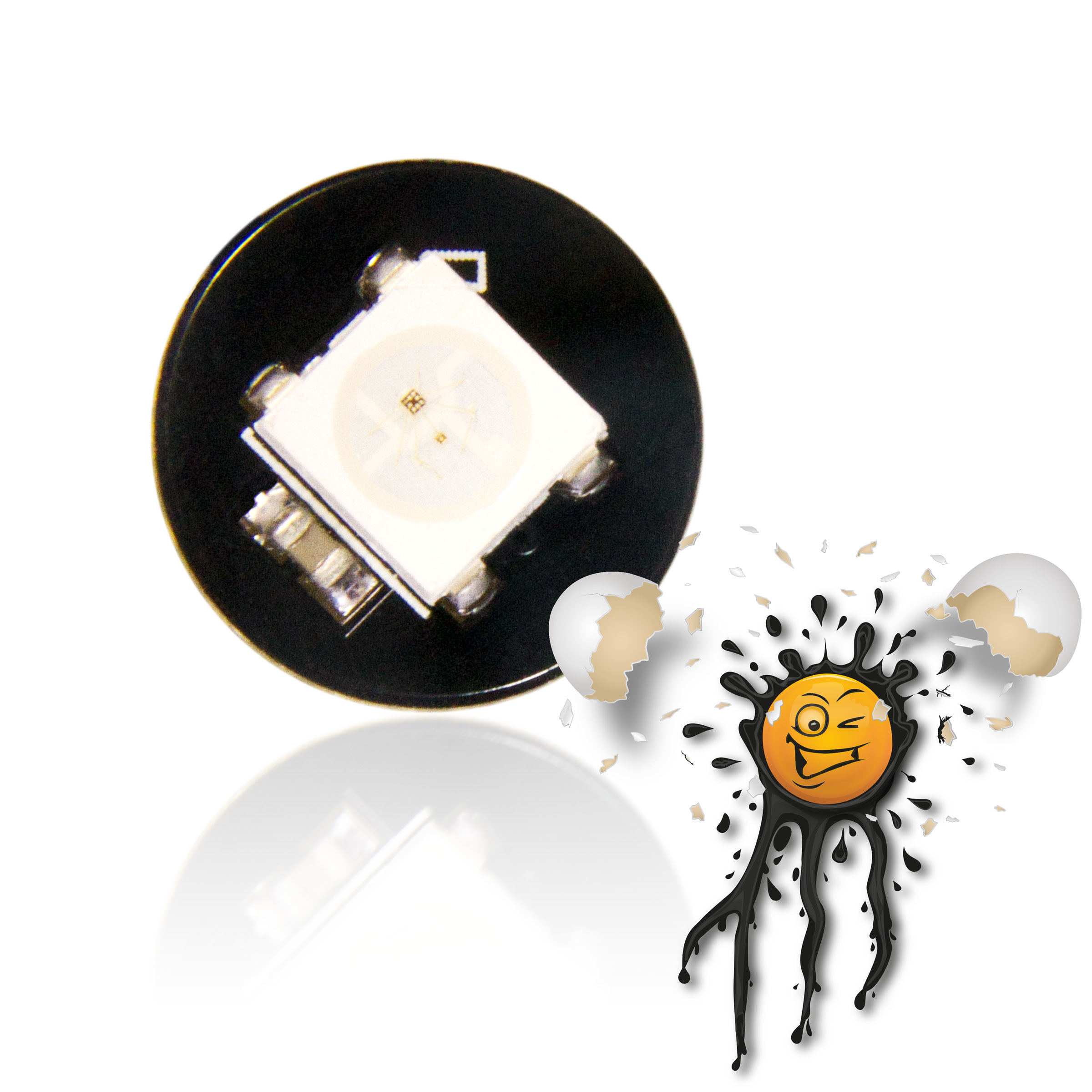

• 1 Bit / 1 x WS2812 RGB LED
  Aussen ø 11 mm

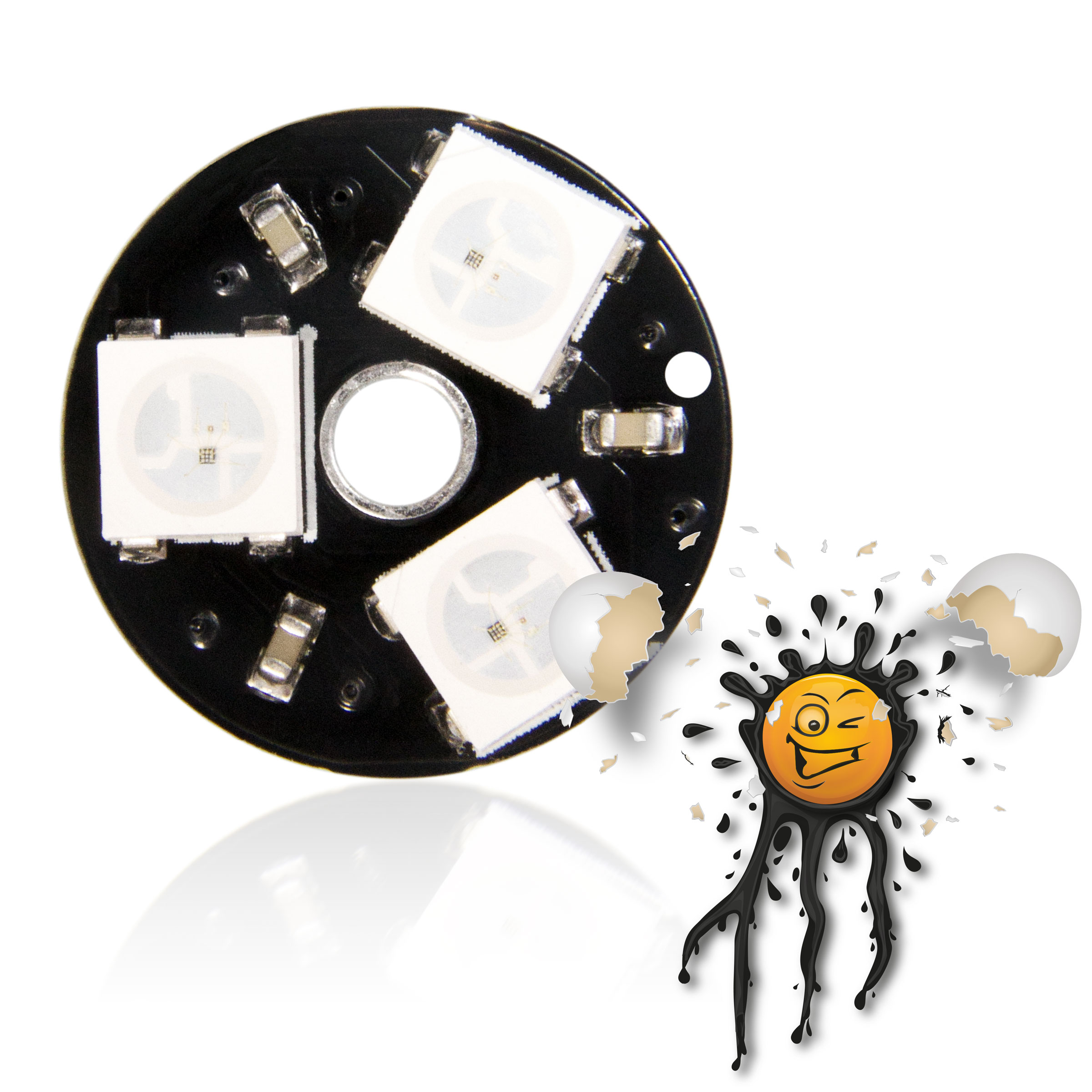

• 3 Bit / 3 x WS2812 RGB LED
  Aussen ø 17 mm
  Innen ø 3,2 mm

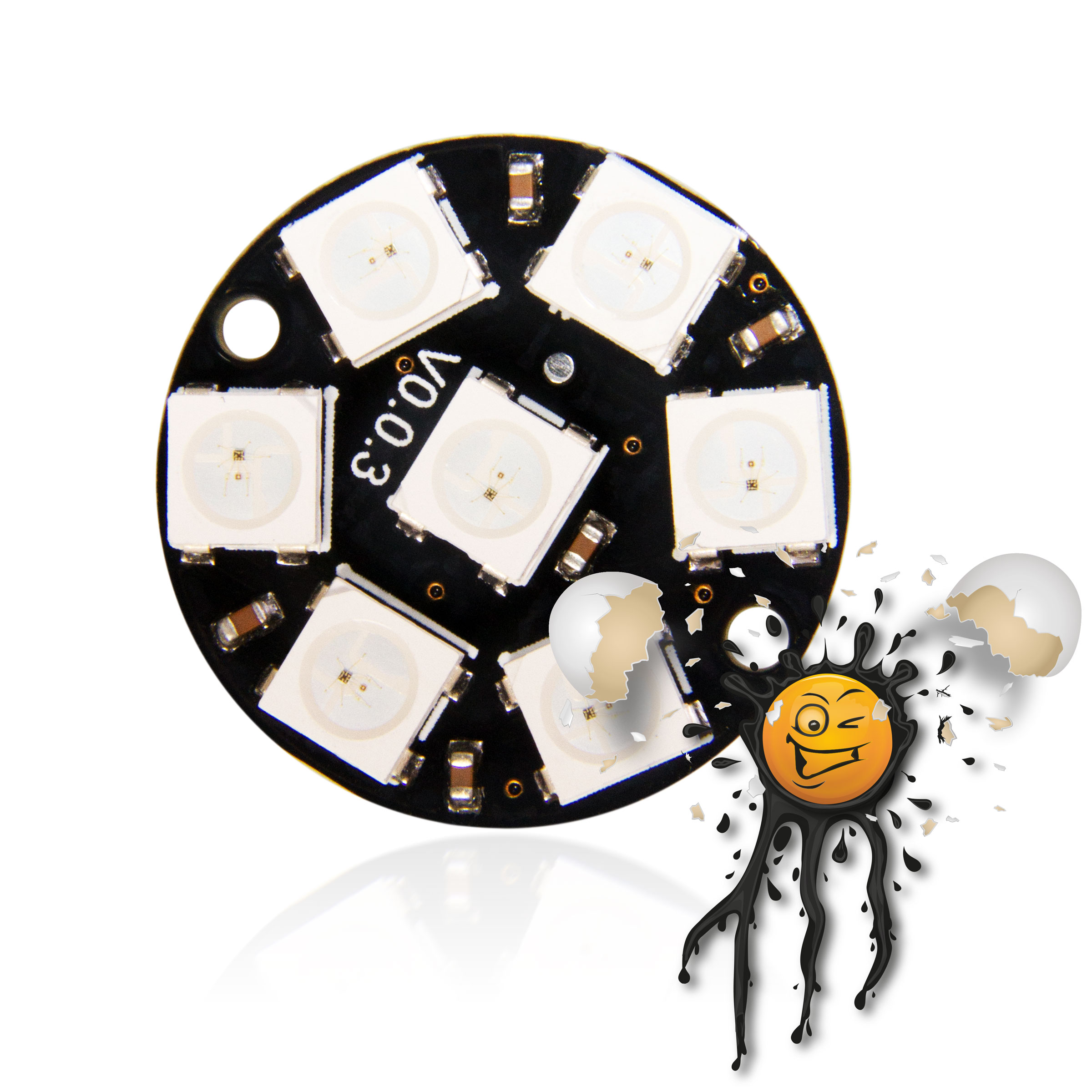

• 7 Bit / 7 x WS2812 RGB LED
  Aussen
  ø 23 mm
• 8 Bit / 8 x WS2812 RGB LED
  Aussen ø 32 mm
  Innen ø 18 mm
• 12 Bit / 12 x WS2812 RGB LED
  Aussen ø 50 mm
  Innen ø 36 mm
• 16 Bit / 16 x WS2812 RGB LED
  Aussen ø 68 mm
  Innen ø 54 mm
• 24 Bit / 24 x WS2812 RGB LED
  Aussen ø 86 mm
  Innen ø 72 mm

Das RGB LED Modul basiert auf WS2812 LED / LED’s die typischerweise mittels entsprechendem Microcontroller wie

• Arduino
• ESP8266
• ESP32
• ARM
• usw.

entsprechend gesteuert wird.

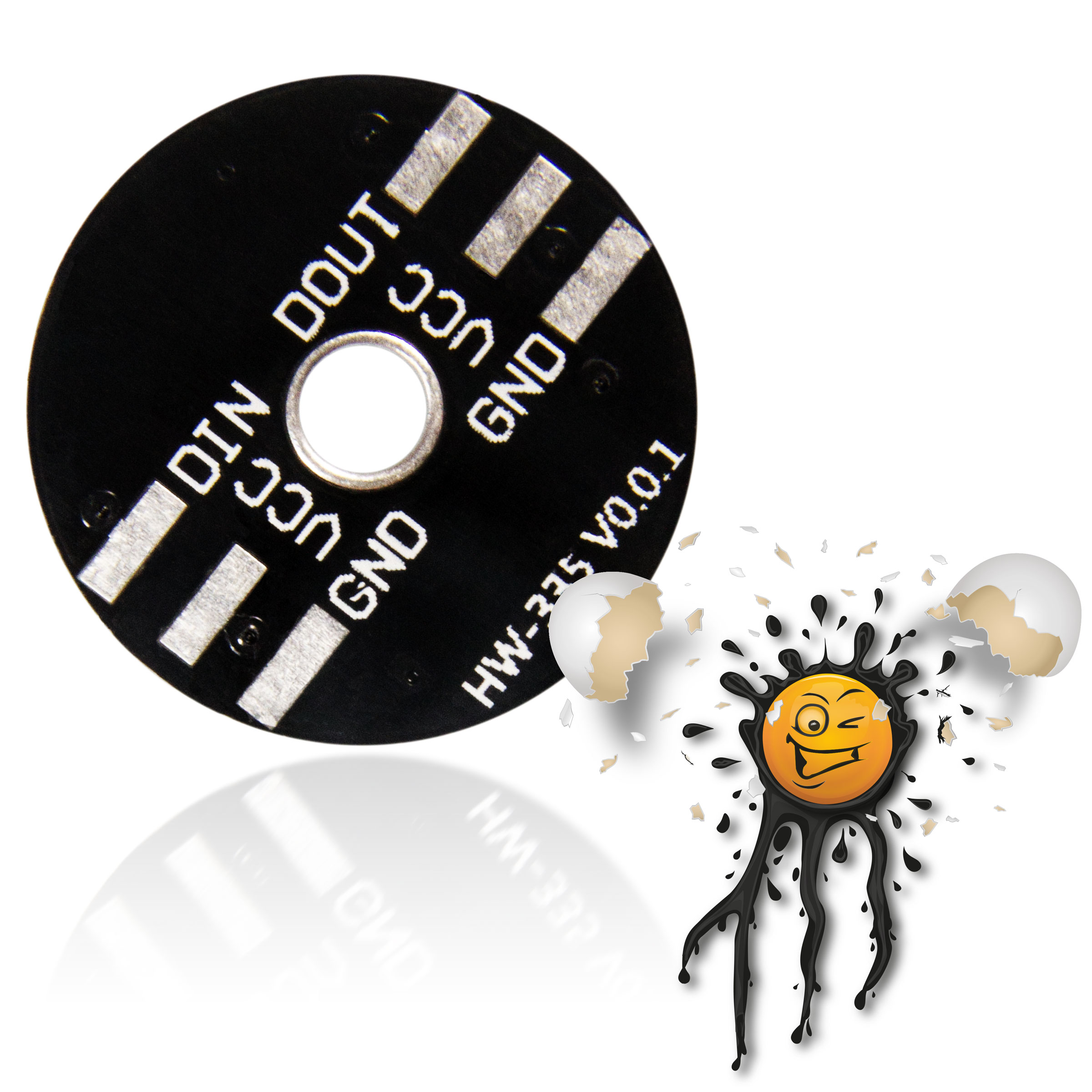

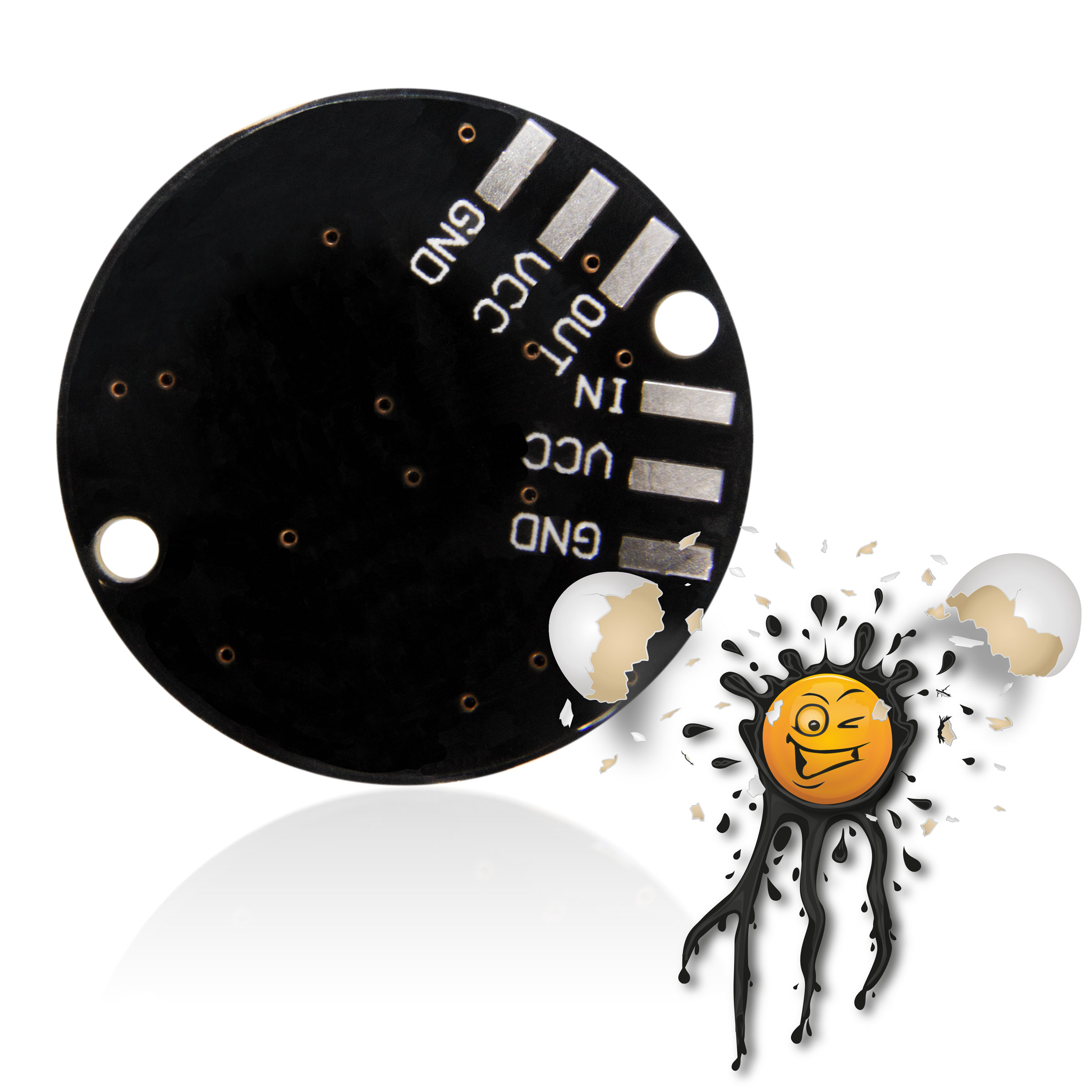

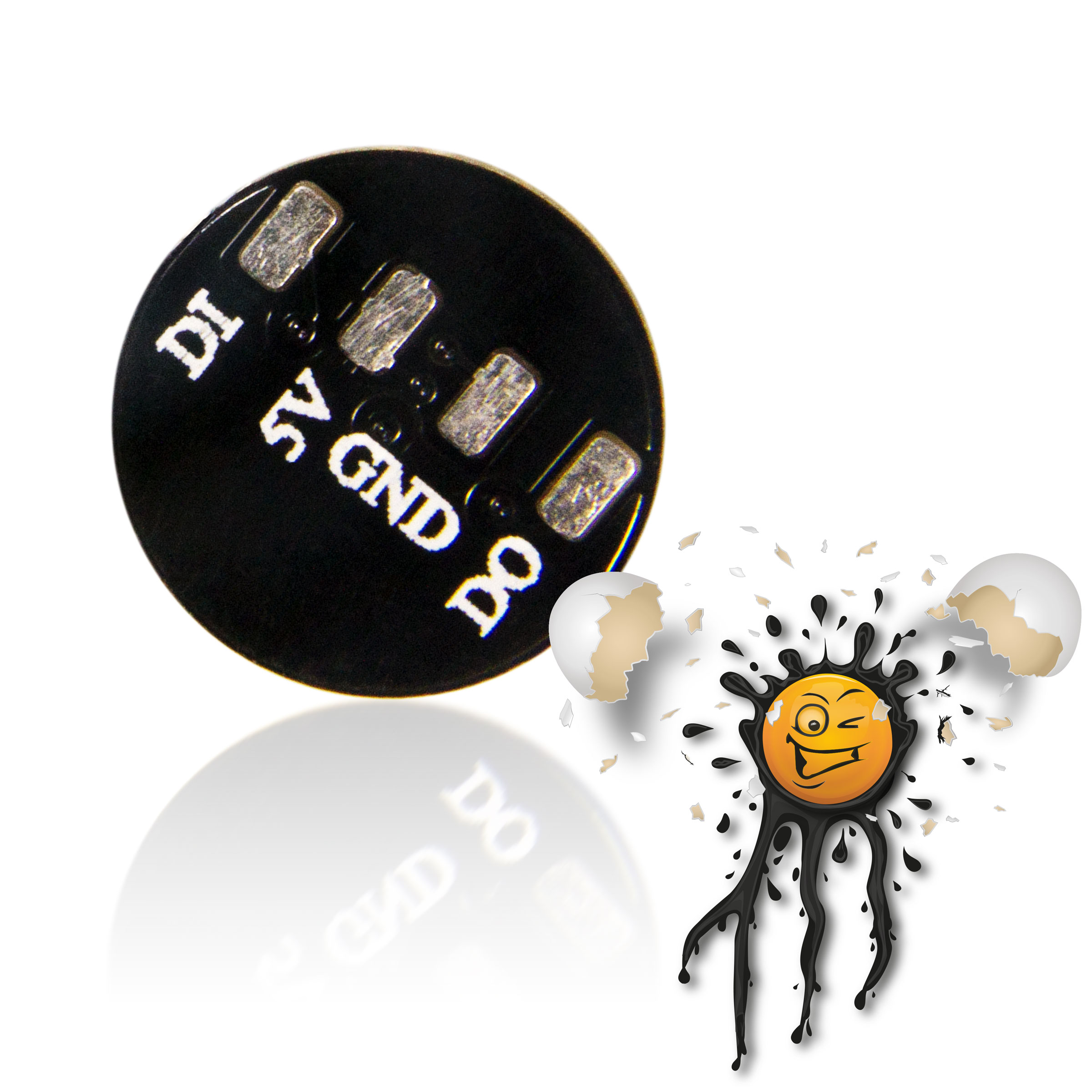

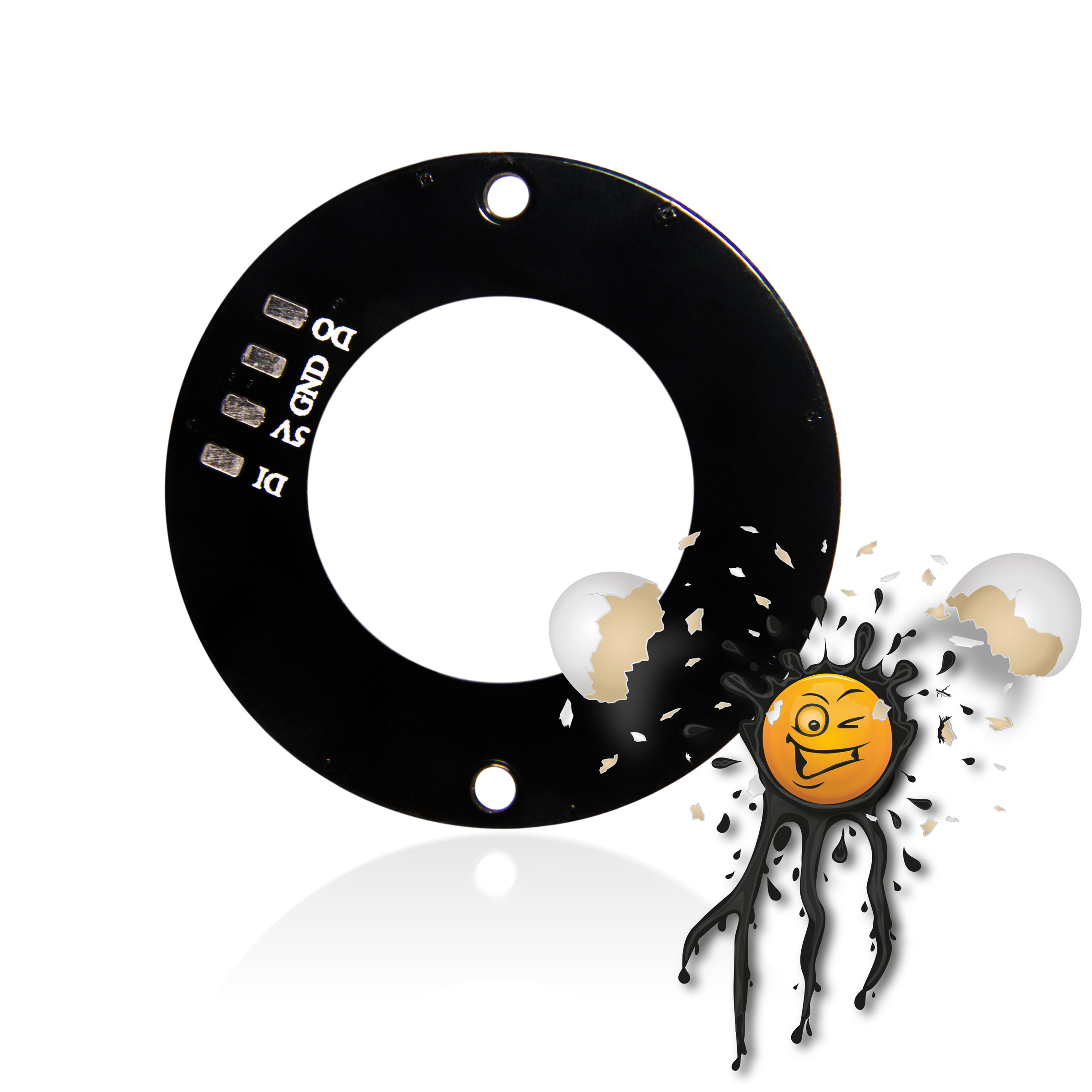

Das Modul verfügt über 4 Anschlüsse

• VCC
• GND
• DI digital In / WS2812 Signal
• DO digital Out WS2812 Signal für weitere Module

WS2812 RGB LED Modul rund 1 bis 24 bit

Das WS2812 Modul benötigt eine Spannungsversorgung von 5VDC.

WS2812 RGB LED Controller Board available versions:

• 1 Bit / 1 x WS2812 RGB LED
  Outer ø 11 mm
• 3 Bit / 3 x WS2812 RGB LED
  Outer ø 17 mm
  Inner ø 3,2 mm
• 7 Bit / 7 x WS2812 RGB LED
  Outer
  ø 23 mm
• 8 Bit / 8 x WS2812 RGB LED
  Outer ø 32 mm
  Inner ø 18 mm
• 12 Bit / 12 x WS2812 RGB LED
  Outer ø 50 mm
  Inner ø 36 mm
• 16 Bit / 16 x WS2812 RGB LED
  Outer ø 68 mm
  Inner ø 54 mm
• 24 Bit / 24 x WS2812 RGB LED
  Outer ø 86 mm
  Inner ø 72 mm

The RGB LED Module is based on WS2812 LED / LED’s typically controlled thru microcontroller unit such as

• Arduino
• ESP8266
• ESP32
• ARM
• etc.

The Module has 4 connectors

• VCC
• GND
• DI digital In / WS2812 Signal
• DO digital Out WS2812 Signal for additional Module

WS2812 RGB LED Module round 1 to 24 bit

The WS2812 Module requires a 5VDC power supply.

WS2812 RGB LED Module Features:

• working voltage 5V
• available from 1 to 24 LED’s
• 4 Pin connector
  • VCC
  • GND
  • DI digital in / Signal
  • DO digital out / Signal
