UPA 1.3 Programmer SOIC8 DIP8 SUB-D 25 Adapter Board

UPA 1.3 Programmer SOIC8 DIP8 SUB-D 25 Adapter Board ST62, NSC CR16, ATMEGA, EEPROM

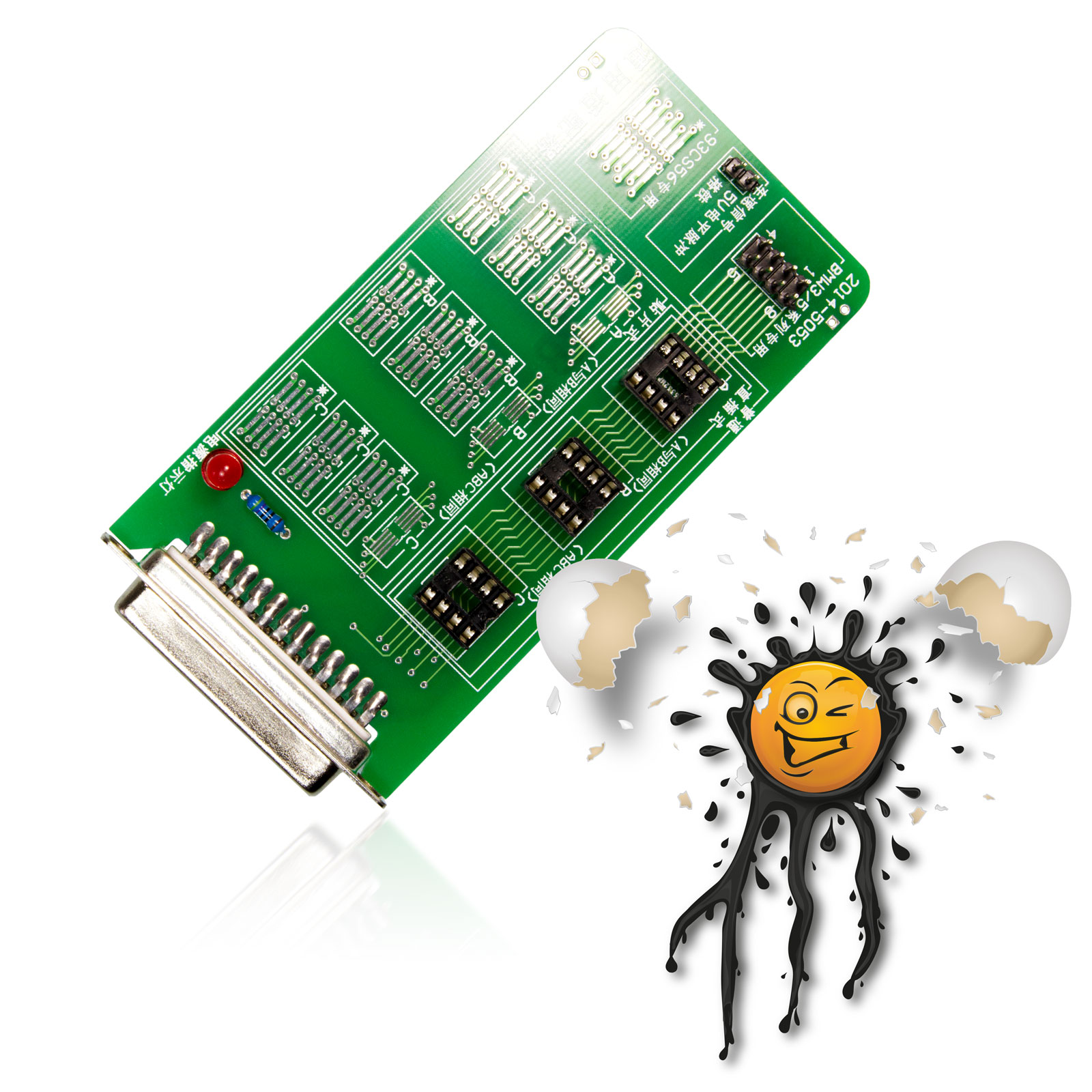

UPA 1.3 SUB-D25 Adapter © androegg

UPA 1.3 Programmer Adapter wie folgt verfügbar:

• SUB-D25 UPA 1.3 Programmer Adapter mit DB 25 Anschluss Buchse

Der UPA 1.3 Adapter erweitert den UPA 1.3 Programmer auf SOIC8 und DIP 8. Die Anbindung erfolgt dabei je nach Version mittels

• SUB-D9 Anschluss oder 10 poligen FC10P IDC Kabel.
• SUB-D25 Anschluss

UPA 1.3 SOIC8 Programmer Adapter

Folgende Chipsätze werden vom UPA 1.3 Programmer unterstützt:

• STMicroelectronics ST62 Serie: ST6240, ST6245, ST6249
• NSC CR16 Serie: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
• Motorola HC05 Serie: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32,
  MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,
  MC68HC05X16, MC68HC05X32
• Motorola HC08 Serie: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32,
  MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
• Motorola HC11 Serie: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20,
  MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2,
  MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
• Motorola HC12 Serie: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A,
  MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
• Motorola HCS12 Serie: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128,
  MC9S12H256
• Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
• Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433,
  AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163,
  ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313
• Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
• Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76,
  PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A),
  PIC16F874(A), PIC16F876(A), PIC16F877(A)
• EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72,
  85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582,
  PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01
• EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66,
  GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
• EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05,
  M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640,
  ST95P02, ST95P04, ST95P08, X5043, X5045
• EEPROMs: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102
• NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974
  TMS…TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912
  TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006

UPA 1.3 Progarmmer Adapter avaialble in 2 versions:

• SUB-D25 UPA 1.3 Programmer Adapter with DB 25 female Connector

The UPA 1.3Adapter extend a UPA 1.3 Programmer for supporting SOIC8 and DIP 8 socket.

UPA 1.3 SOIC8 Programmer Adapter

The UPA 1.3 Programmer Adapter supports:

• STMicroelectronics ST62 Series: ST6240, ST6245, ST6249
• NSC CR16 Serie: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
• Motorola HC05 Series: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32,
  MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,
  MC68HC05X16, MC68HC05X32
• Motorola HC08 Series: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32,
  MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
• Motorola HC11 Series: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20,
  MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2,
  MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
• Motorola HC12 Series: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A,
  MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
• Motorola HCS12 Series: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128,
  MC9S12H256
• Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
• Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433,
  AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163,
  ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313
• Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
• Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76,
  PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A),
  PIC16F874(A), PIC16F876(A), PIC16F877(A)
• EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72,
  85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582,
  PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01
• EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66,
  GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
• EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05,
  M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640,
  ST95P02, ST95P04, ST95P08, X5043, X5045
• EEPROMs: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102
• NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974
  TMS…TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912
  TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006
