TP4056 standard USB Micro Akku Li Ion Laderegler

TP4056 standard USB Micro Akku Li Ion Laderegler / Battery Charger Modul

TP4056 Li Ion charger Standard Version © androegg

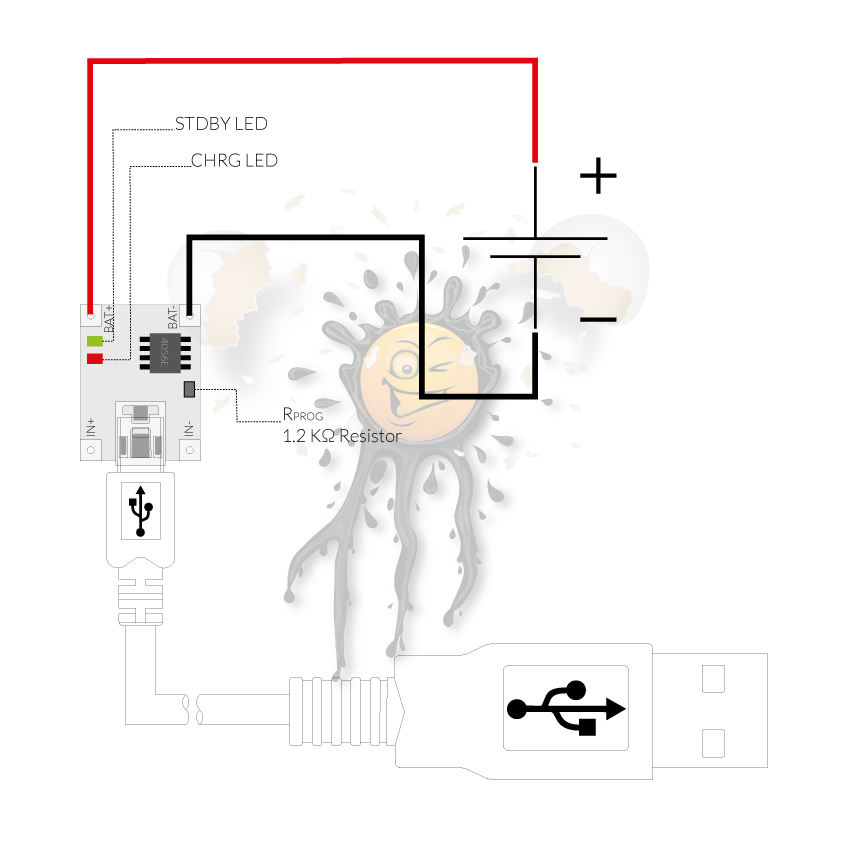

TP4056 Li Ion charger Schematic © androegg

BITTE BEACHTEN das Produktbild zeigt einen Mini USB Anschluss, dieses Angebot umfasst wie beschreiben den TP4056 mit USB MICRO Anschluss.

Li ion Akku Laderegler

Der TP4056 arbeitet mit einem Ladestrom zwischen 100mA bis 1000 mA (standard 1000mA / 1,2 KΩ R3 Widerstand). Der Ladestrom des TP4056 kann mittels Widerstand R3 (siehe Tabelle) entsprechend geändert werden.

The TP4056 Standard Lithium-Ion Battery charger module with USB Micro Socket

IMPORTANT NOTE Picture shows TP4056 Module with USB Mini Socket, this Module is with USB MICRO Socket.

Lithium-Ion Battery charger

The TP4056 works in a current range between 100mA to 1000mA (standard 1000mA / 1.2KΩ R3 Resistor). The Charging. Current of the TP4056 its adjustable thru R3 resistance (table below).

TP4056 Li Ion Charger Features:

• self protection temperature
• self protection current
• Battery Charging Indicator LED
• Battery Full Charged Indicator LED
• Input supply voltage 4.5-6.5V
• Output Voltage toreance ± 1.5%
• max. output current 1000mA
• typical output voltage 4.2V
• automatic charge cycle (reduce charge current to 10% when programmed charge current reached
