TP4056 DW01A FS8205 USB Micro Akku Li Ion Laderegler

TP4056 DW01A FS8205 USB Akku Li Ion Ladergler / Battery Charger Modul Arduino Set

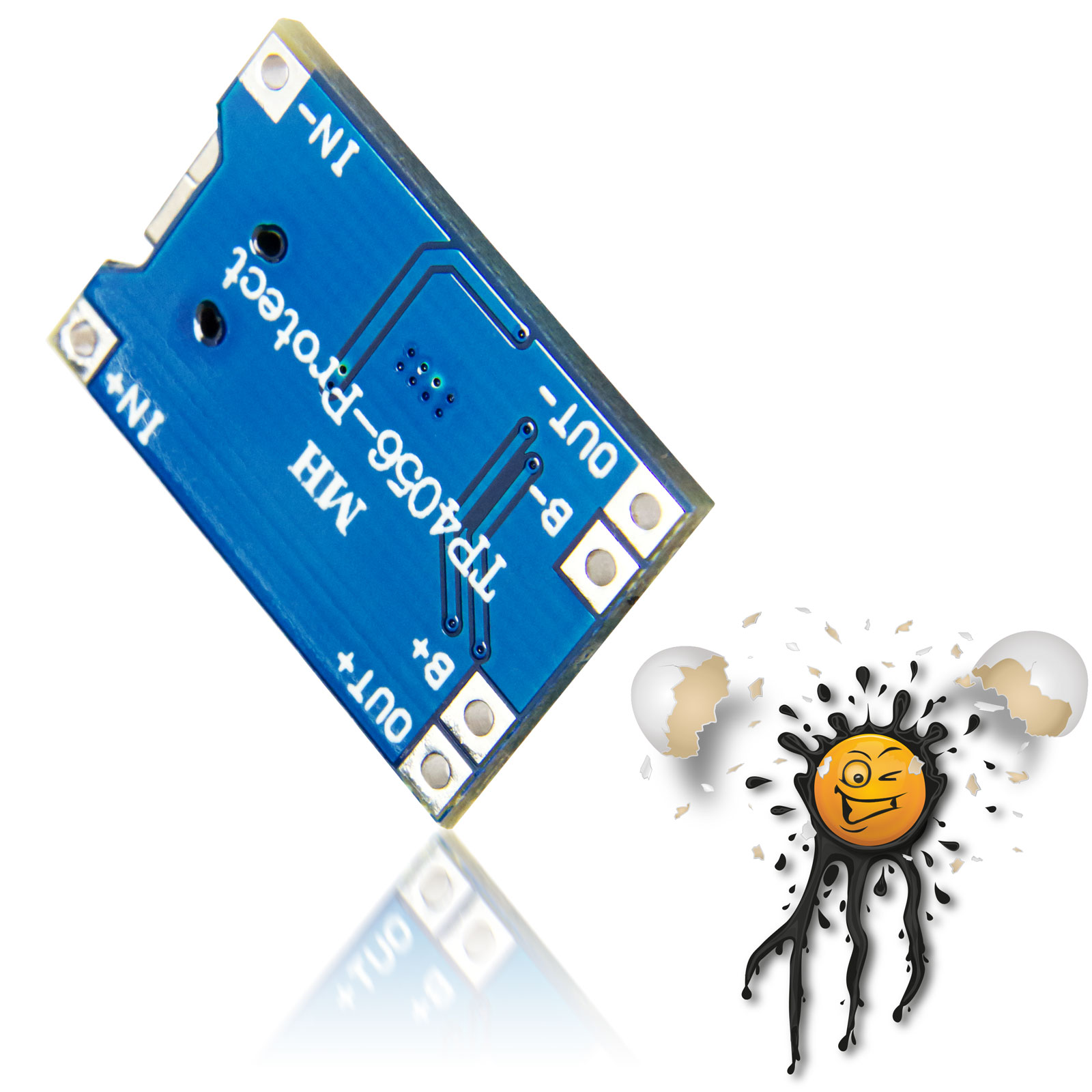

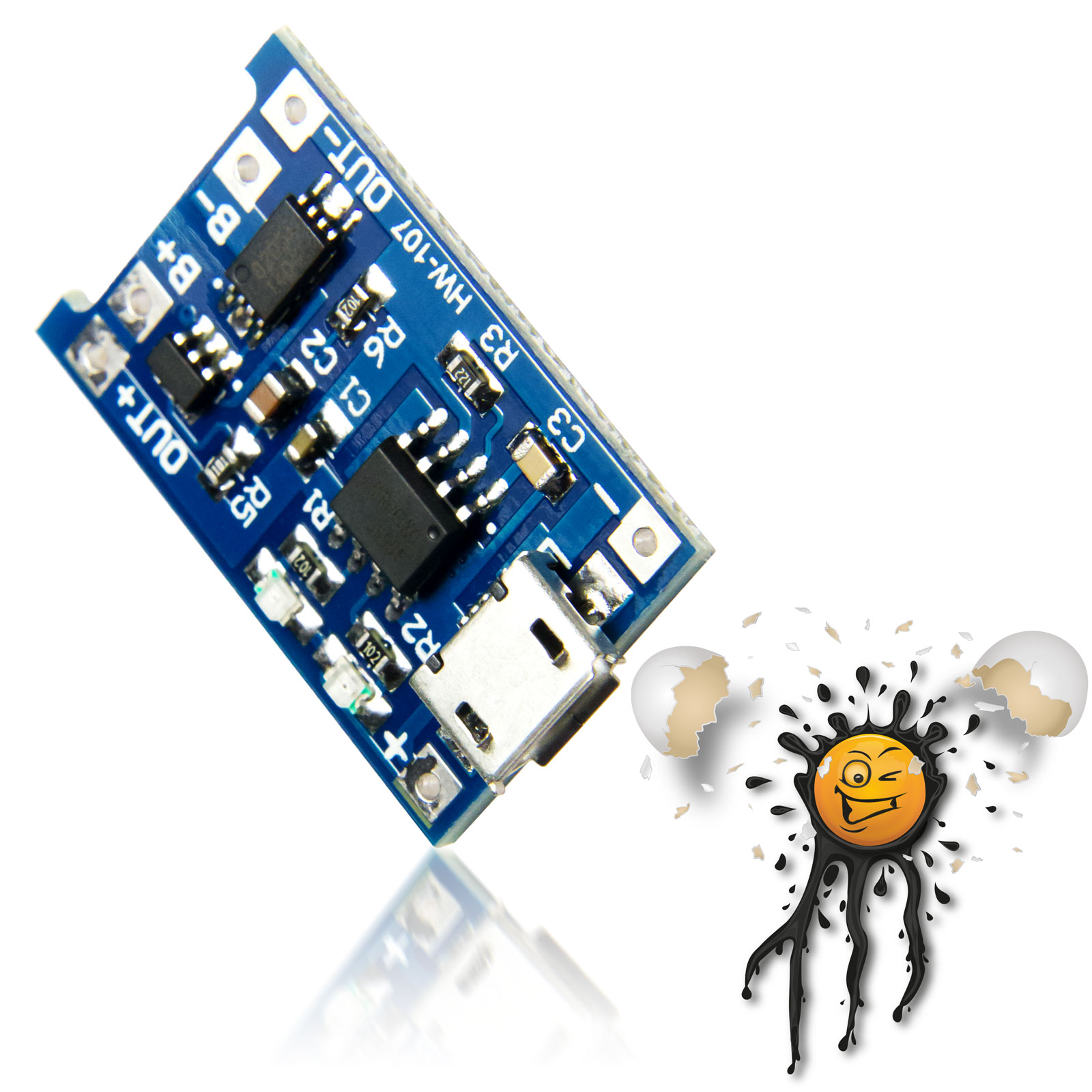

TP4056 USB Micro Li Ion Charger Protect Module © androegg

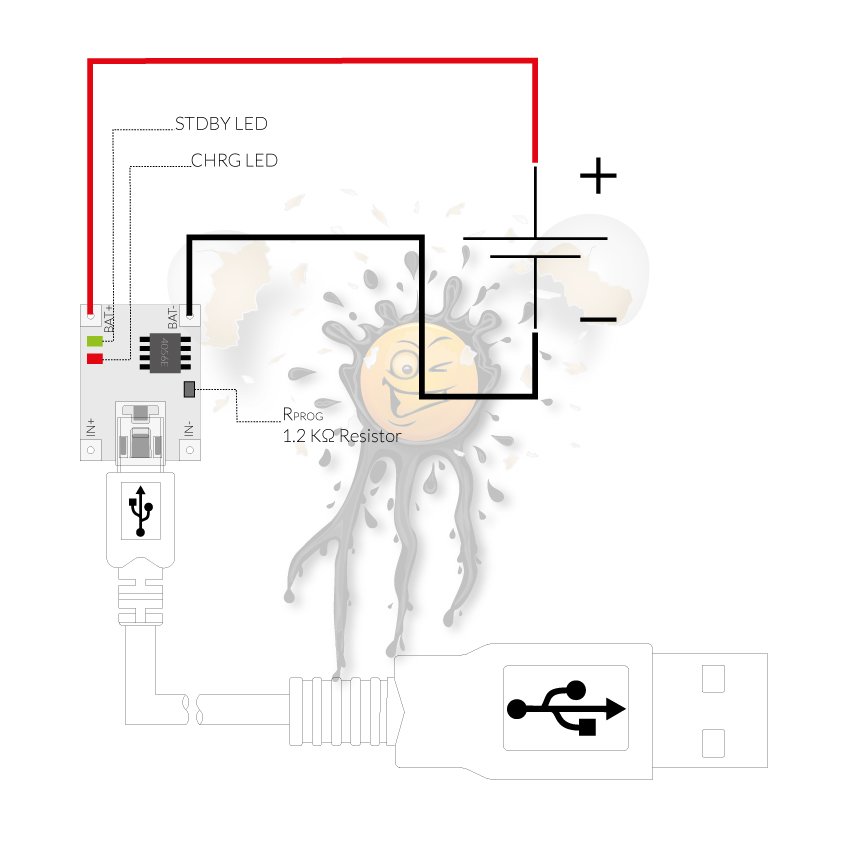

TP4056 Schematic © androegg

Im Vergleich zum standard TP4056 Modul verfügt das TP4056-DW01A-FS805A Laderegler Modul zusätzlich über

•  einen Protection IC DW01A gegen Überladung
• FS8205A zweikanal N Kanal Power Mosfet

Li ion Akku Laderegler

Der TP4056 arbeitet mit einem Ladestrom zwischen 100mA bis 1000 mA (standard 1000mA / 1,2 KΩ R3 Widerstand). Der Ladestrom des TP4056 kann mittels Widerstand R3 (siehe Tabelle) entsprechend geändert werden.

The TP4056 Protect Lithium-Ion Battery charger modulewith
DW01A protection IC on board
FS8205A dual N-Channel Mosfet on board
USB Micro Socket

Compared to the standard TP4056 Module the TP4056-DW01A-FS805A Li Ion Charger Module got additional

•  a DW01A battery protection IC
• FS8205A Dual N-Channel Power MOSFET

on Board.

Lithium-Ion Battery charger

The TP4056 works in a current range between 100mA to 1000mA (standard 1000mA / 1.2KΩ R3 Resistor). The Charging. Current of the TP4056 its adjustable thru R3 resistance (table below).

TP4056 Li Ion Charger Features:

• DW01A battery protection IC on Board
• FS8205A Dual N-Channel Power MOSFET on Board
• self protection temperature
• self protection current
• Battery Charging Indicator LED
• Battery Full Charged Indicator LED
• Input supply voltage 4.5-6.5V
• Output Voltage toreance ± 1.5%
• max. output current 1000mA
• typical output voltage 4.2V
• automatic charge cycle (reduce charge current to 10% when programmed charge current reached
