MT3608 USB-C Step Up Boost Spannungs- Voltage- Konverter

MT3608 USB-C Step Up Boost Spannungs- Voltage- Konverter 2-24Vin max. 28Vout 2A adjustable Arduino

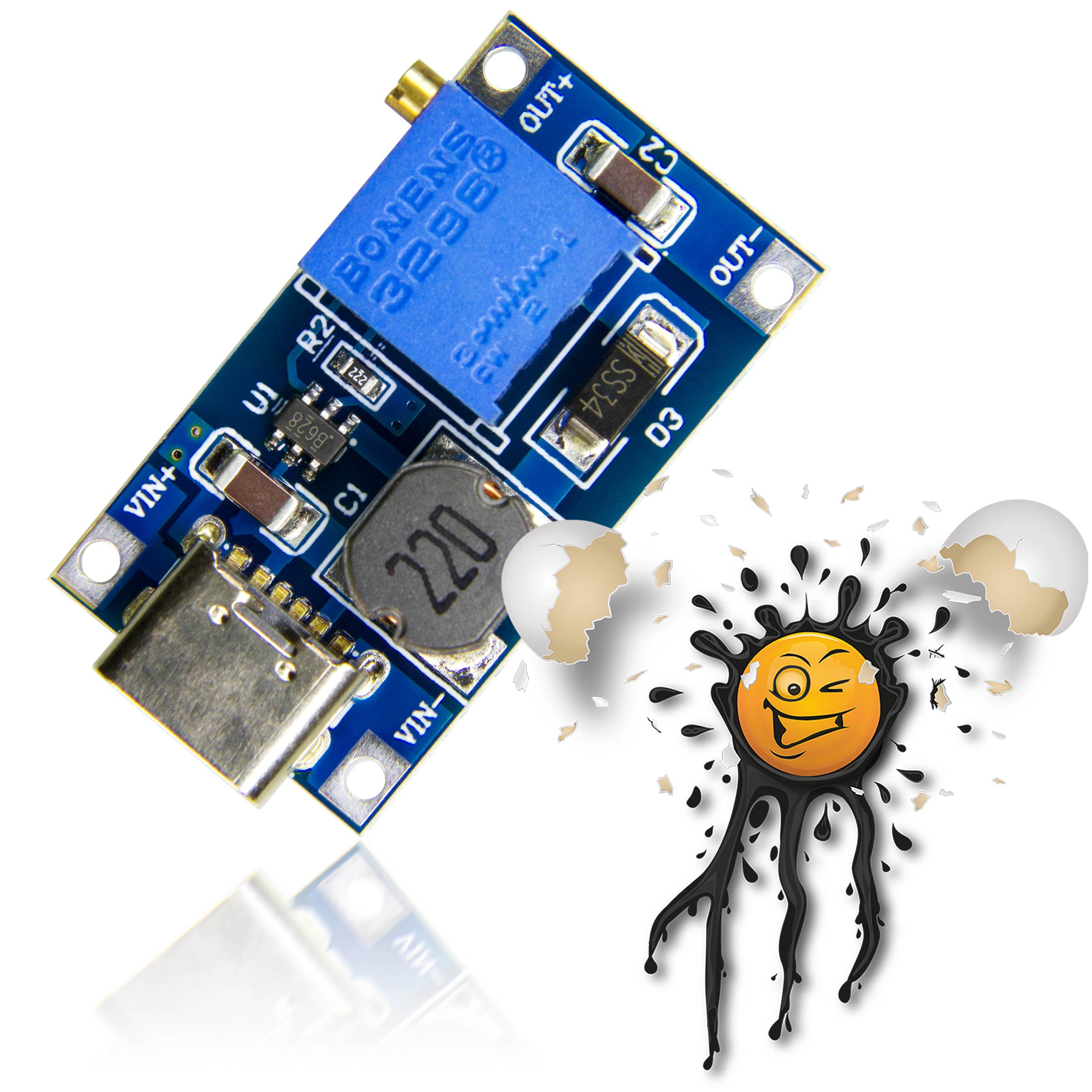

MT3608 USB-C Boost Step Up Voltage Converter © androegg

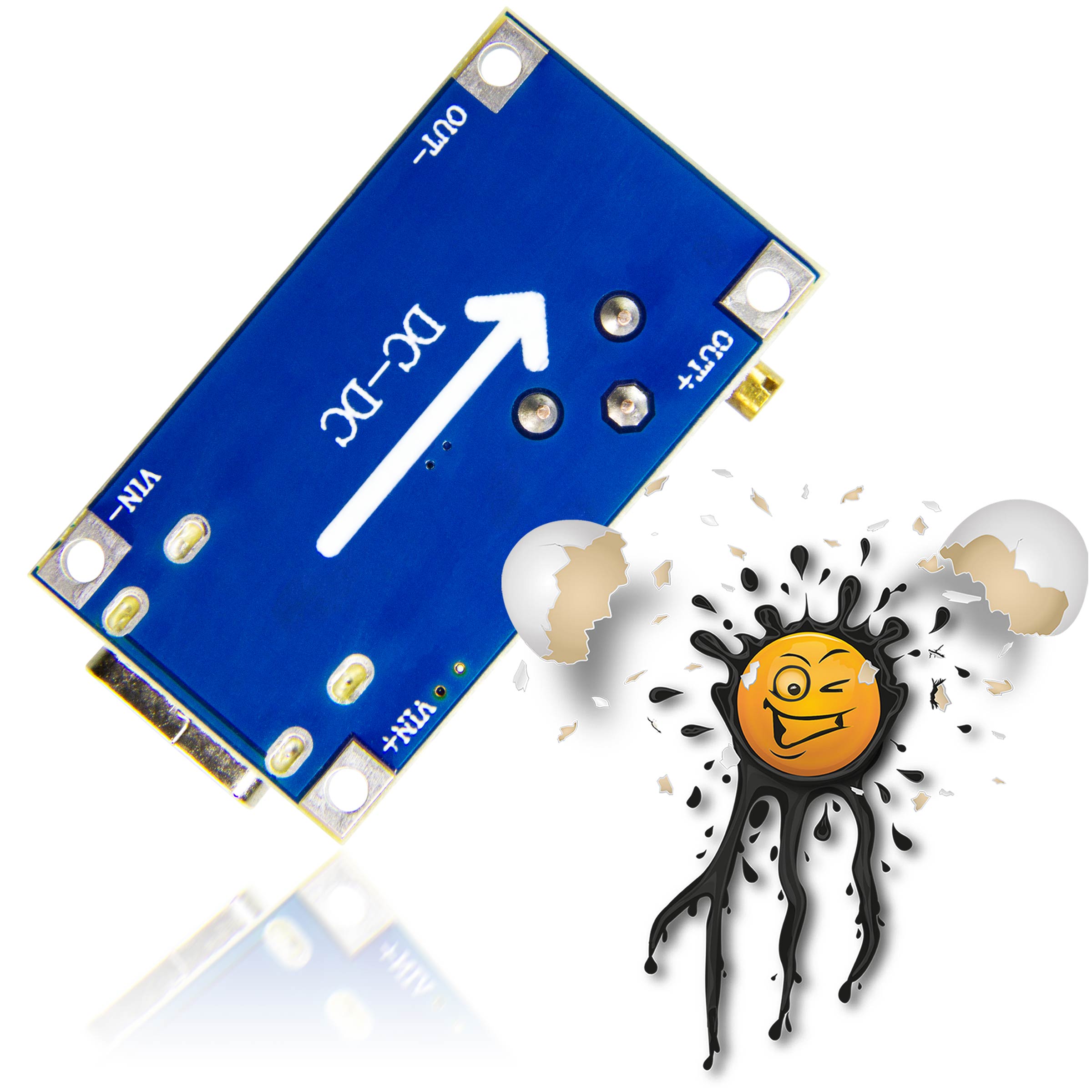

MT3608 USB-C 2-28V Boost Converter © androegg

Die Ausgangsspannung des MT3608 Step Up Konverter wird mittels einem Potentiometer zwischen (2-28V) eingestellt.

bis zu 28V über USB-C Schnittstelle

Der MT3608 Step Up Konverter muss dabei lediglich über USB-C oder alternativ am VIN+ und VIN- mit einer Versorgungsspannung belegt werden.

The MT3608 USB-C Step Up Voltage Converter is optimized for raising DC Voltage. The MT3608 USB-C Voltage Converter handles input voltage from 2-24V.

Required output voltage can be freely adjusted between 2-28V within integrated pot.

Up to 28V over USB-C Interface

For boosting Voltage, simply connect MT3608 Boost Converter to USB-C port or connect Vin- and Vin+ to power source.

MT3608 USB-C Step Up Converter Features:

• USB-C Socket connector
• Integrated 80mΩ Power MOSFET
• 2V to 24V Input Voltage
• 1.2MHz Fixed Switching Frequency
• Internal 4A Switch Current Limit
• Adjustable Output Voltage 2V to 28V
• Internal Compensation
• Automatic Pulse Frequency Modulation
  Mode at Light Loads
• up to 97% Efficiency
• Operating Temperature -40°C to +85°C
• up to 2000 mA
• Under Voltage Lockout 1.98V
