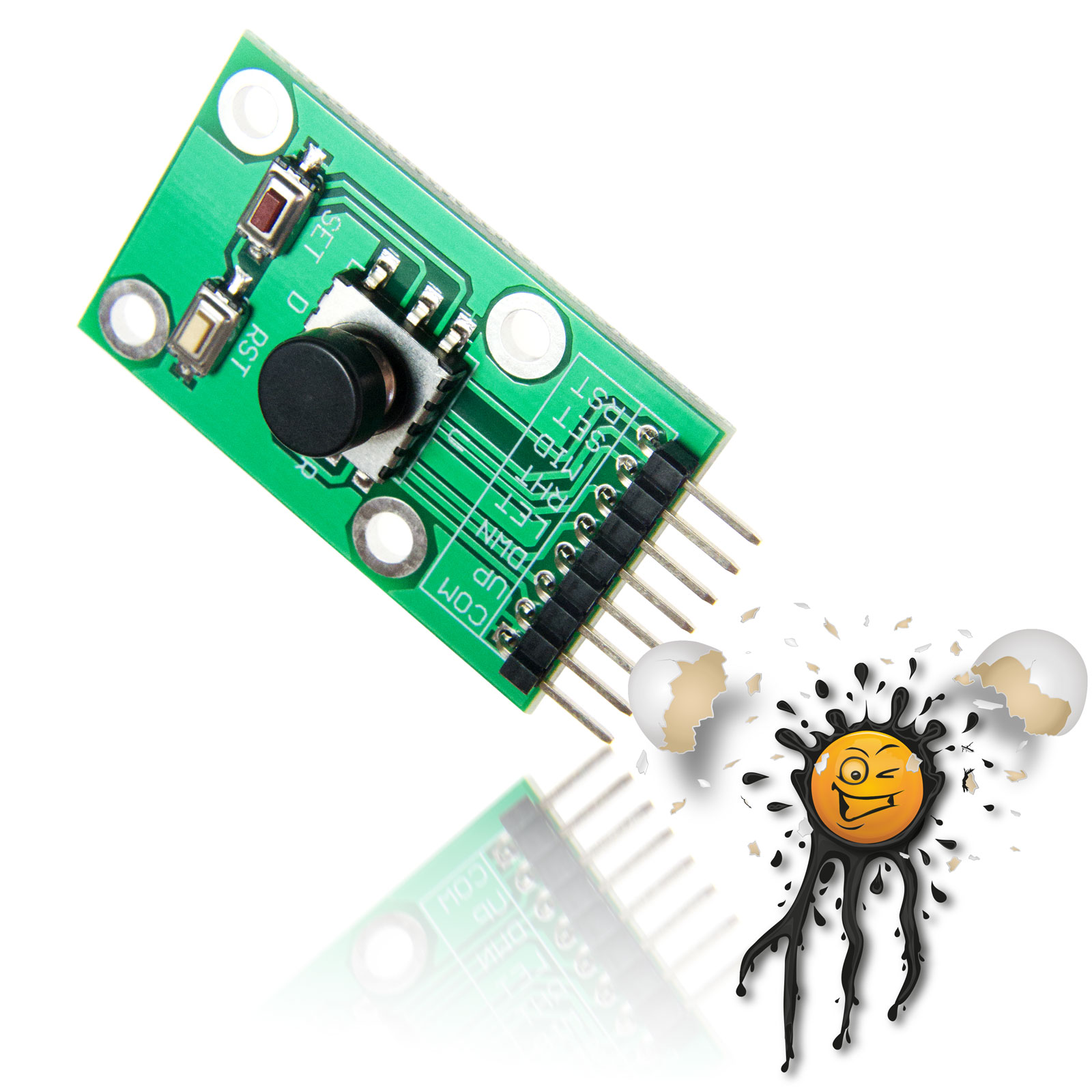

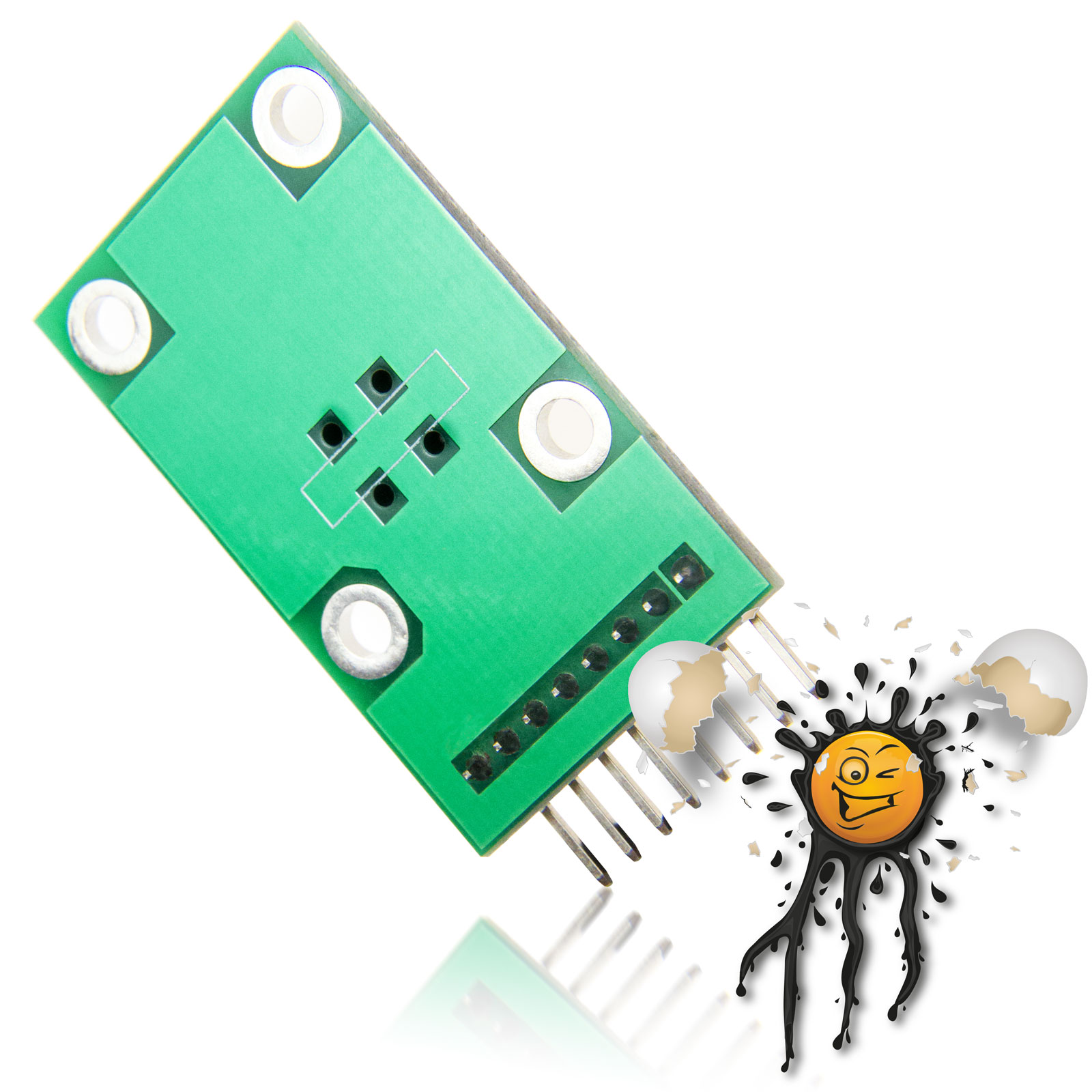

Joystick 5-Richtungen 5-Direction Navigation Taster Button Modul

Joystick 5-Richtungen 5-Direction Navigation Taster Button Modul ESP8266 Arduino

Arduino User Interface Break Out Module © androegg

5-Direction + 2 Button Break Out Module 2.54 mm pitch © androegg

Das Joystick Taster Modul eignet sich hervorragend für typische Benutzereingaben.

Das Joystick Taster Modul verfügt über

• 1 5-Richtungs Button (Joystick Funktion) mit den Funktionen
  UP
  DOWN
  LEFT
  RIGHT
  MIDDLE
• 1 Reset Taster
• 1 Set Taster

Modul zur Benutzereingabe

Die Belegung des Joystick Taster Moduls erfolgt mittels Pinleiste, angeordnet im Abstand von 2,54 mm

The Joystick Button Module is perfect as typical User Interface.

The Joystick Button Module supports

• 1 5-direction Buttom (Joystick function) with
  UP
  DOWN
  LEFT
  RIGHT
  MIDDLE
• 1 Reset Button
• 1 Set Button

USER Interface Module

Joystick Button Module Features:

• Operating voltage: 2.0V-9.0V
• Operating temperature: -40℃ -85℃
• Size: 40 x 25 mm / 1.57×0.98″
• 2.54 mm pitch pinheader
  1. COM (Common end): VCC or GND
  2. UP (Up direction button): Connect to IO pin of the MCU
  3. DWN (Down direction button): Connect to IO pin of the MCU
  4. LFT (Left direction button): Connect to IO pin of the MCU
  5. RHT (Right direction button): Connect to IO pin of the MCU
  6. MID (Middle direction button): Connect to IO pin of the MCU
  7. SET (Set button): Connect to IO pin of the MCU
  8. RST (Reset button): Connect to IO pin of the MCU
• 1 pcs. 5 direction (joystick) button
• 1 pcs. set button
• 1 pcs. reset button
