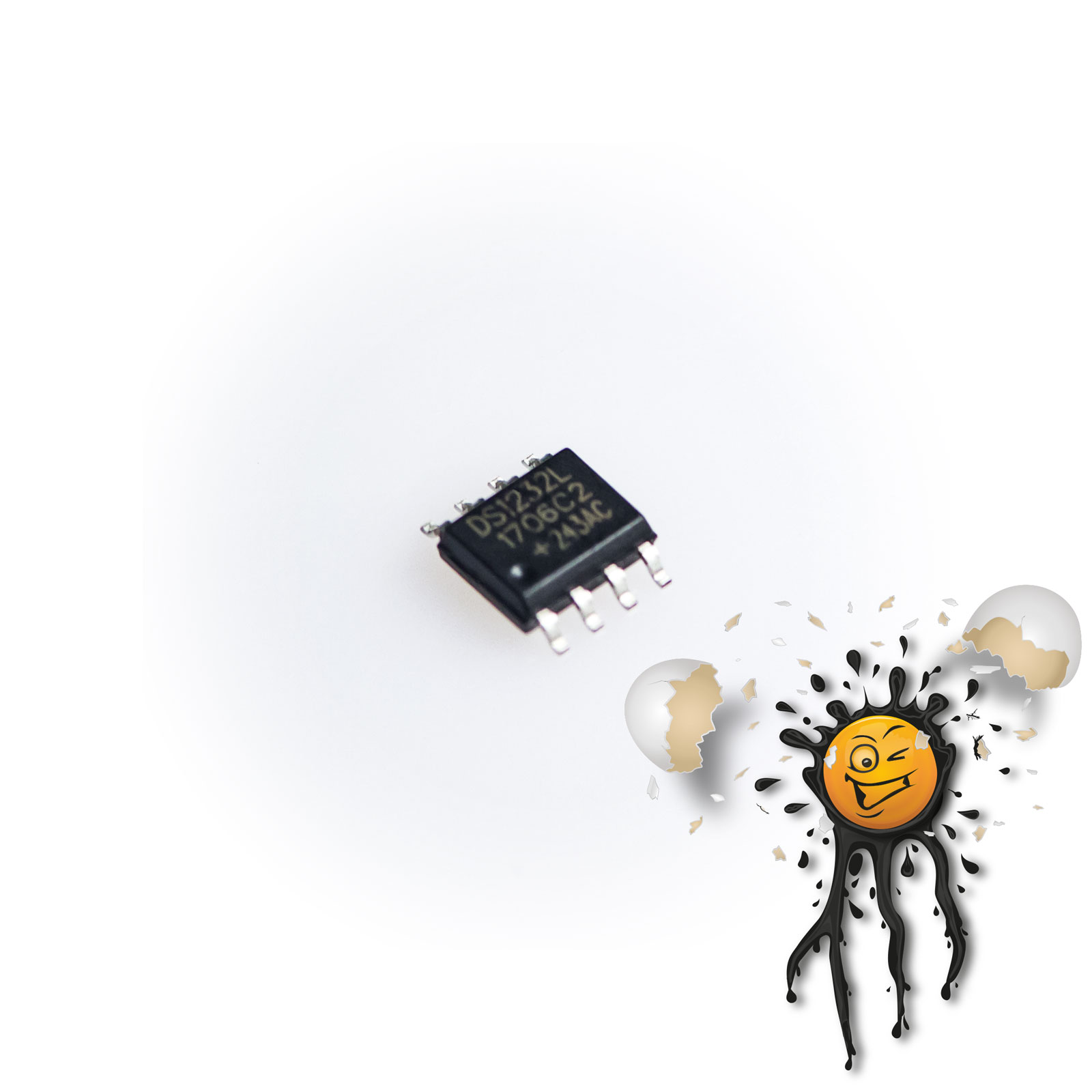

DS1232 Watchdog timer Supervisor Reset MicroMonitor Spannungswächter SOP-8 IC |
||||
|
DS1232 Watchdog Supervisor Reset MicroMonitor SOP-8 IC © androegg
|
Der DS1232 MicroMonitor IC ist im
Der DS1232 MicroMonitor IC überwacht 3 Zustände eines Microprozessors
|
The DS1232 MicroMonitor IC is available
The DS1232 MicroMonitor Chip monitors 3 conditions for a microprocessor:
|
||
DS1232 MicroMonitor IC Features:The DS1232 MicroMonitorTM Chip monitors three vital conditions for a microprocessor: power supply, software execution, and external override. First, a precision temperature-compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signals are kept in the active state for a minimum of 250 ms to allow the power supply and processor to stabilize. The second function the DS1232 performs is pushbutton reset control. The DS1232 debounces the pushbutton input and guarantees an active reset pulse width of 250 ms minimum. The third function is a watchdog timer. The DS1232 has an internal timer that forces the reset signals to the active state if the strobe input is not driven low prior to timeout. The watchdog timer function can be set to operate on timeout settings of approximately 150 ms, 600 ms, and 1.2 seconds.
|
||||
Sensor case Features:
|
||||
DS1232 Watchdog timer Supervisor Reset MicroMonitor Spannungswächter SOP-8 IC
2,99 €
DS1232 Watchdog timer Supervisor Reset MicroMonitor Spannungswächter SOP-8 IC
Kategorie: IC Integrierte Schaltung
Schreibe die erste Bewertung für „DS1232 Watchdog timer Supervisor Reset MicroMonitor Spannungswächter SOP-8 IC“ Antworten abbrechen
