APDS-9930 RGB IR Distanz Gestik Sensor

APDS-9930 RGB Licht IR Distanz Proximity Gestik Gesture Sensor I2C Arduino

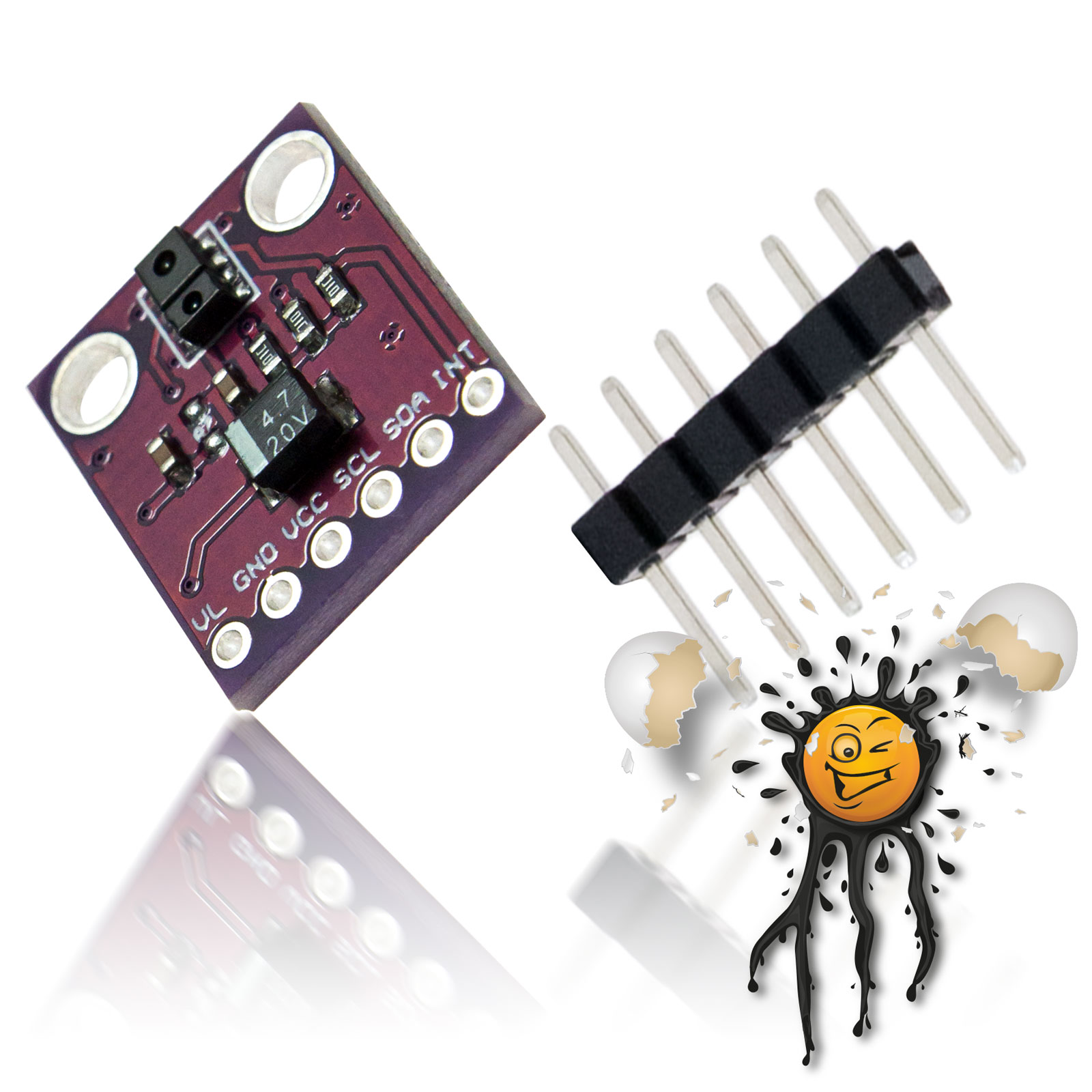

APDS-9930 RGB IR Proximity Gesture Sensor incl. Pinheader © androegg

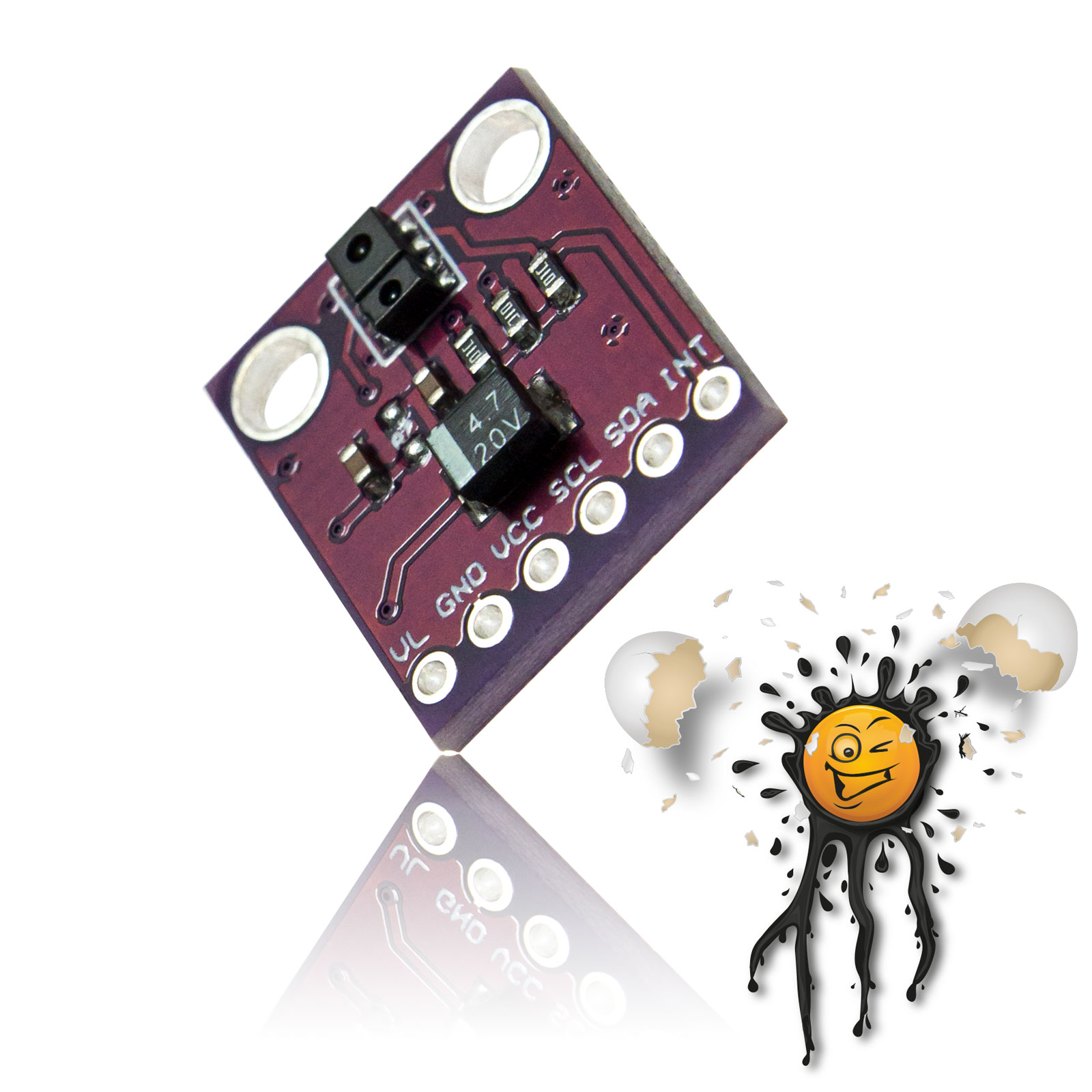

APDS-9930 RGB IR Proximity Gesture I2C Sensor © androegg

APDS-9930 RGB IR Proximity Gesture Sensor © androegg

• Helligkeit
• Gestik (kontaktlos Schalten)

Die Distanzerkennung funktioniert dabei

•  sowohl in heller Umgebung (z.B. Sonnenlicht)
• als auch in dunklen Räumen

RGB Distanzsensor Modul

Das APDS-9930 Sensor Modul verfügt über eine I2C Schnittstelle.

The proximity function of the APDS-9930 offers a detection function with a distance range up to 100 mm for

• Ambient Light Sensing (ALS)
• Gesture (switch without contact)

The proximity detection feature operates well

• from bright sunlight
• to dark rooms

RGB IR Proximity Sensor Module

The APDS-9930 Sensor Module supports I2C Interface.

APDS-9930 RGB IR ProximitY Module Features:

• Working voltage:2.8-3.8V
• ALS, IR LED and Proximity Detector in an Optical Module;
• Ambient Light Sensing (ALS);
• Approximates Human Eye Response;
• Programmable Interrupt Function with Upper and Lower Threshold;
• Up to 16-Bit Resolution;
• High Sensitivity Operates Behind Darkened Glass;
• Low Lux Performance at 0.01 lux;
• Proximity Detection;
• Fully Calibrated to 100 mm Detection;
• Integrated IR LED and Synchronous LED Driver;
• Programmable Wait Timer;
• Programmable from 2.7 ms to > 8 sec;
• I2C Interface Compatible;
• Up to 400 kHz (I2C Fast-Mode);
• Dedicated Interrupt Pin;
• Sleep Mode Power – 2.2 uA Typical
