5 Stück / pcs. MAX809M Microprocessor Supervisor 140ms Reset 5V Spannungswächter IC

5 Stück / pcs. MAX809M Microprocessor Supervisor 140ms Reset 5V Spannungswächter IC

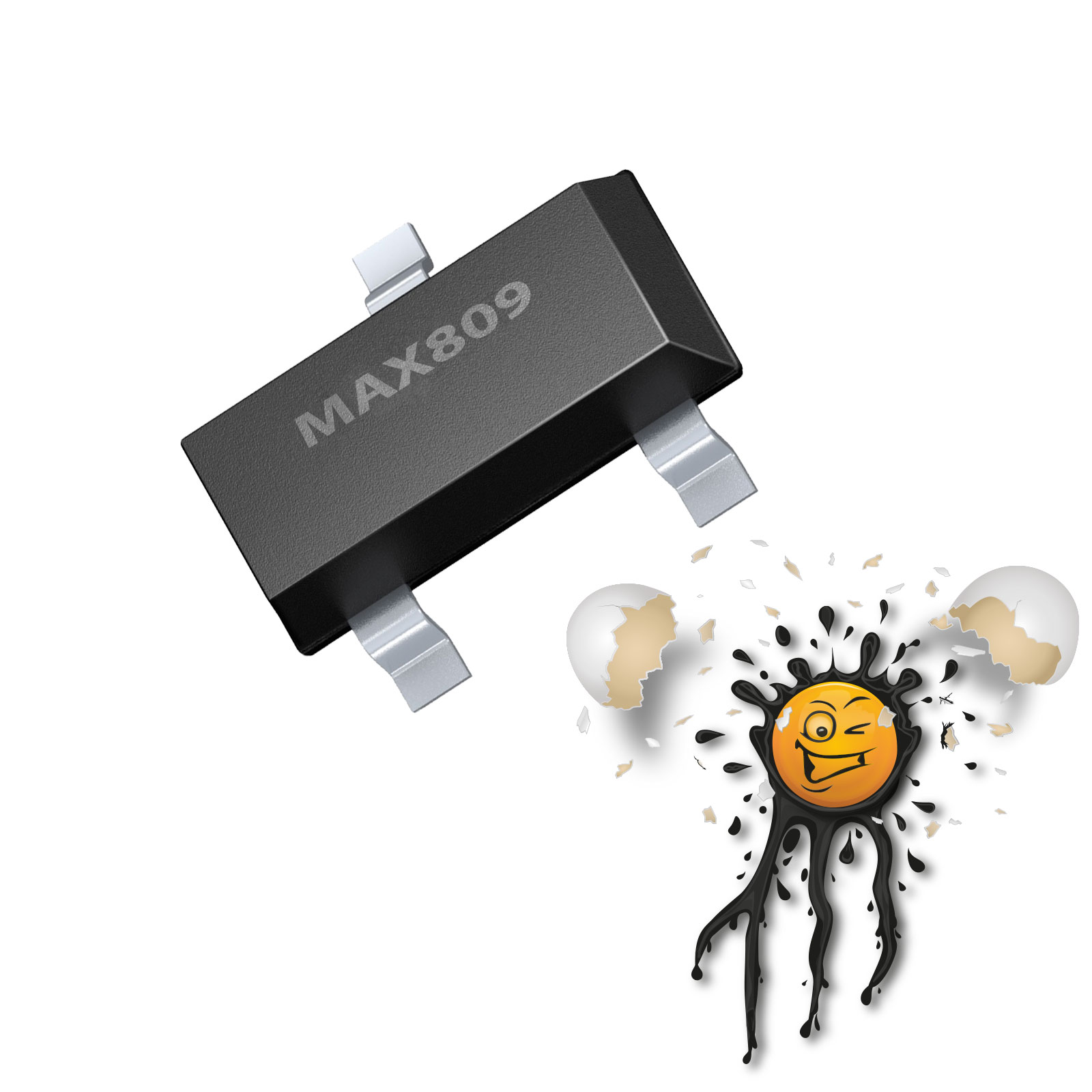

MAX809 Supervisor Reset MicroMonitor IC © androegg

Der MAX809 ist wie folgt verfügbar

• MAX809M 4,38V (25°C)

The MAX809 its a Supervisor SOT23 IC for Voltage Control with integrated Reset Function.

The MAX809 is available

• MAX809M 4.38V (25°C)

MAX809 Supervisor Reset IC Features:

The MAX803/MAX809/MAX810 are microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V powered circuits. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available.

The MAX803/MAX809 have an active-low RESET output, while the MAX810 has an active-high RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1V.

• Precision Monitoring of
  +5V MAX809M
  Power-Supply Voltages
• Fully Specified Over Temperature
• Output Push-Pull RESET
• 140ms (min) Power-On-Reset Pulse Width
• 12μA Supply Current
• Guaranteed Reset Valid to VCC = +1V
• Power Supply Transient Immunity
• No External Components
• 3-Pin SOT23 Package
