4 Kanal/Channel Relais Modul 12V 10A/250VAC 10A/30VDC Optokoppler

Arduino ESP8266 4 Kanal/Channel Relais Modul 12V 10A/250VAC 10A/30VDC Optokoppler

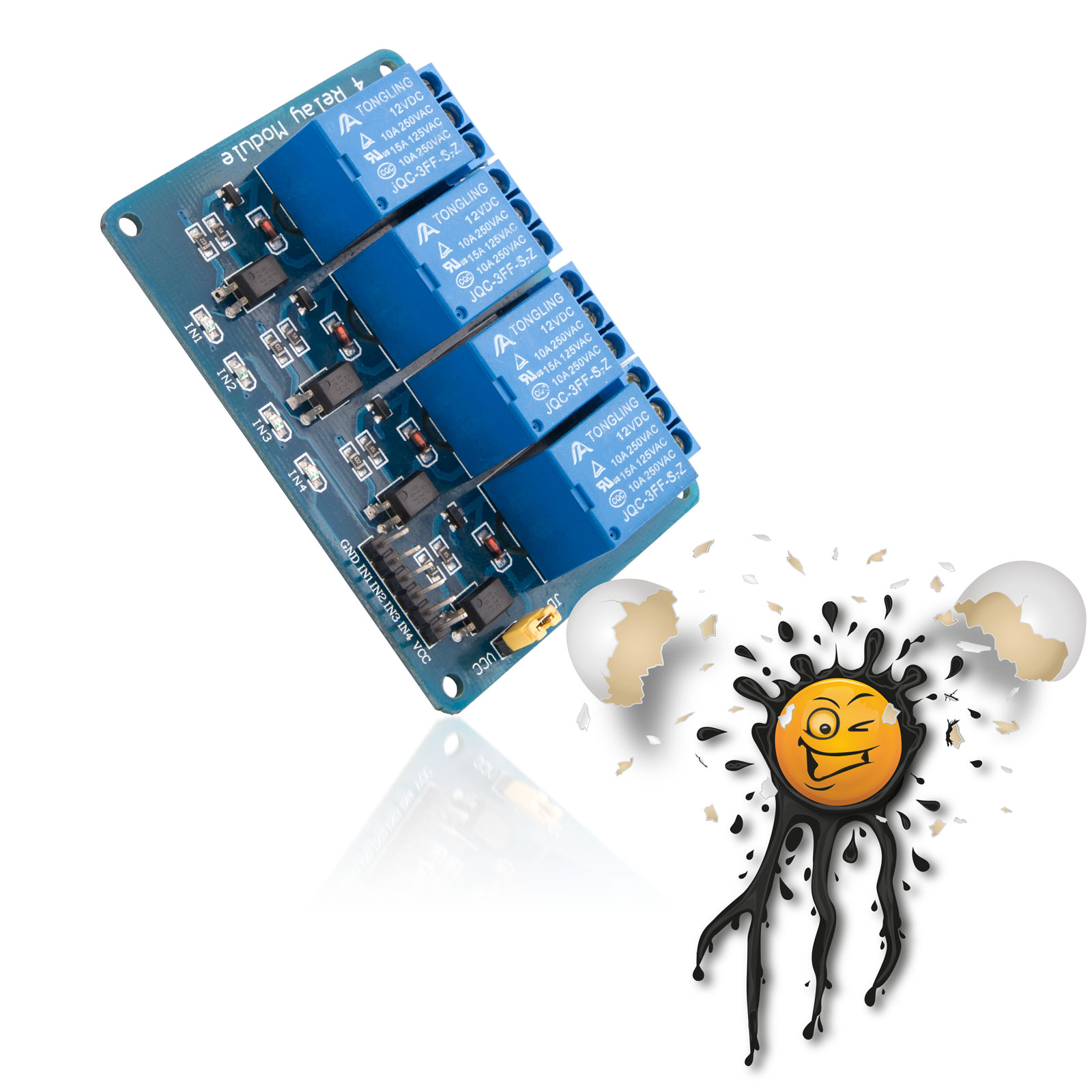

12V 4 Channel Relais Modul © androegg

12V 4 Channel Relais Modul © androegg

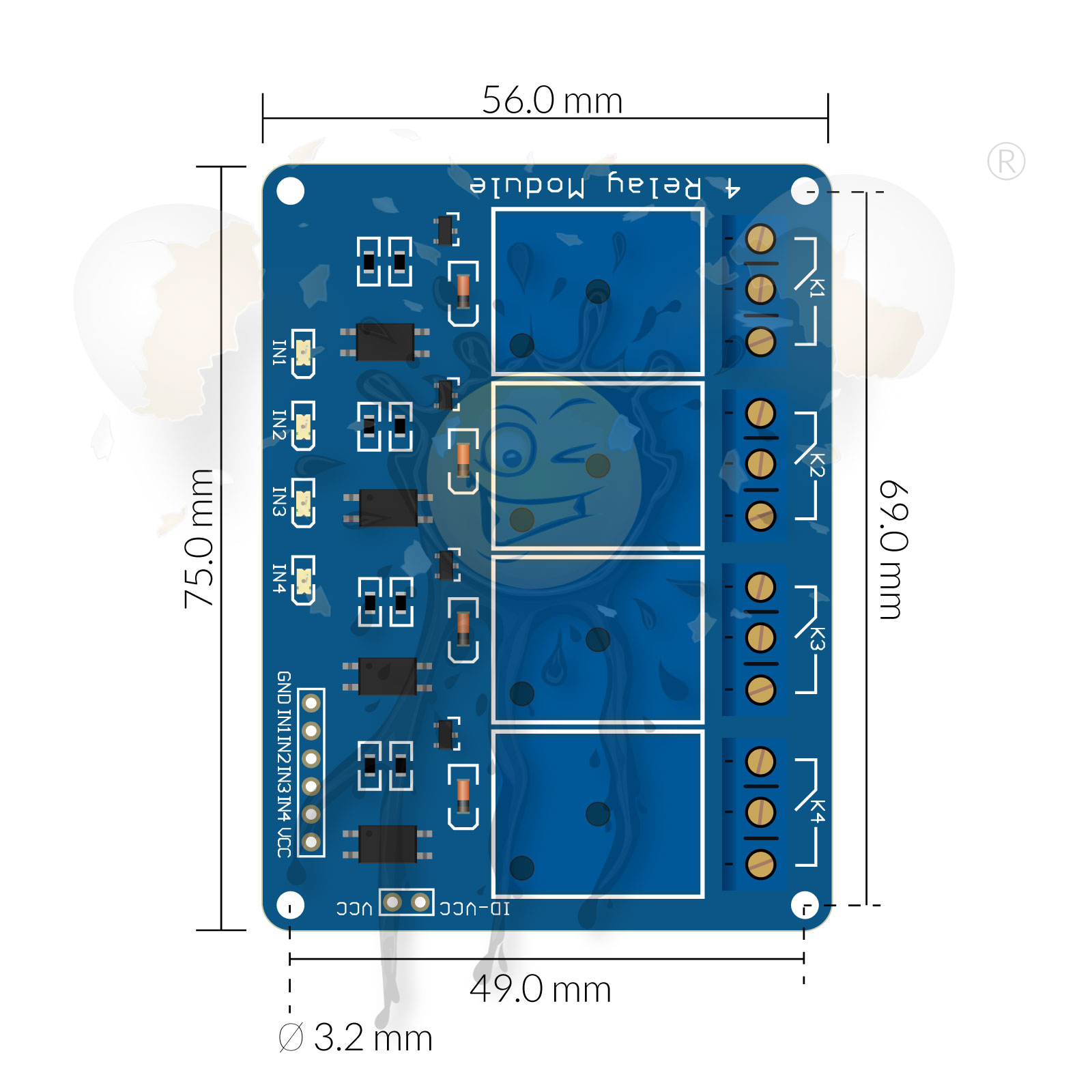

4 Channel Relais Modul Dimensions © androegg

4 Kanal 12 Volt Relais Modul schaltet

• Wechselspannungen bis zu
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• Gleichspannungen bis zu
  30V max. 10A

mit integriertem Optokoppler

4 Channel 12 Volt Relais switches

• AC Voltage up to
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• DC Voltage up to
  30V max. 10A

with integrated Optocoupler

4 Channel Relay Module Features:

• Coil Voltage 12V
• Coil Sensitivity 0.36W
• CCC Rating 250 VAC/10A 30VDC/10A
• UL/CUL Rating 125VAC/10A 28VDC/10A
• Nominal Current 71.4mA each Relay
• Coil Resistance 70 (Ω) ±10%
• Power Consumption 0.36W each Relay
