4 Kanal Channel 5V Relais Modul

4-Kanal Multi Relais Modul 5V 10A/250VAC 10A/30VDC Optokoppler Arduino Trigger

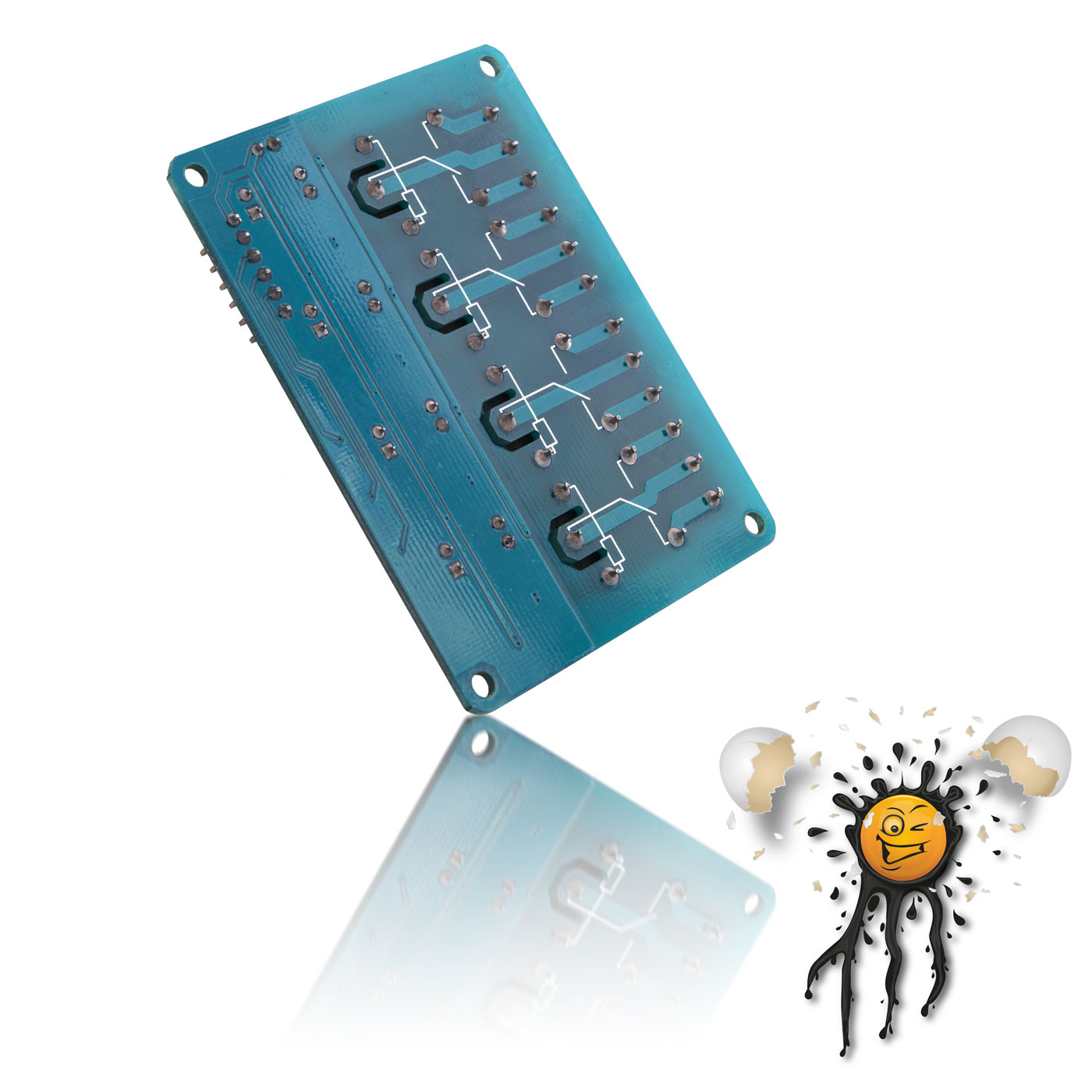

5V 4 Channel Relais Modul © androegg

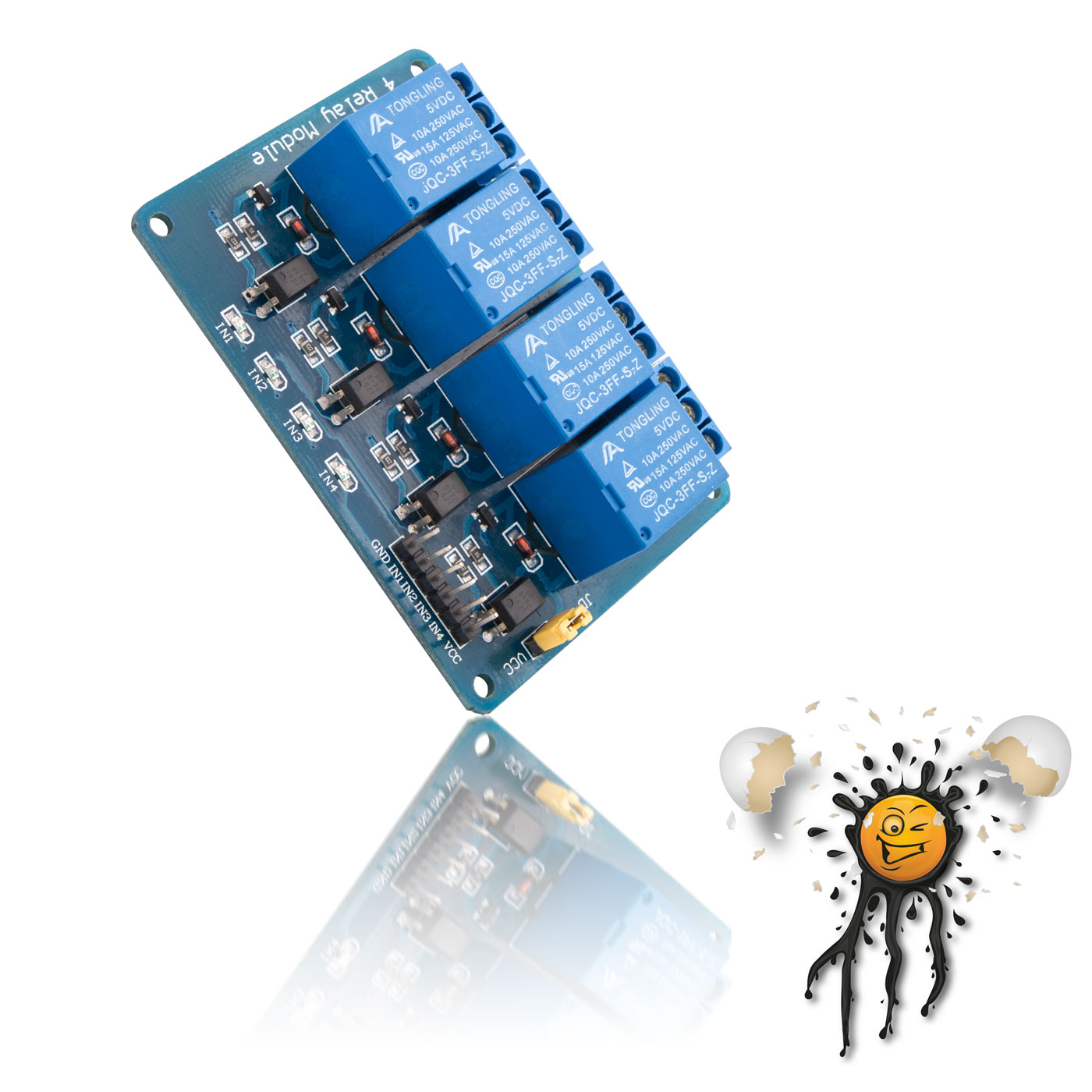

5V 4 Channel Relais Modul © androegg

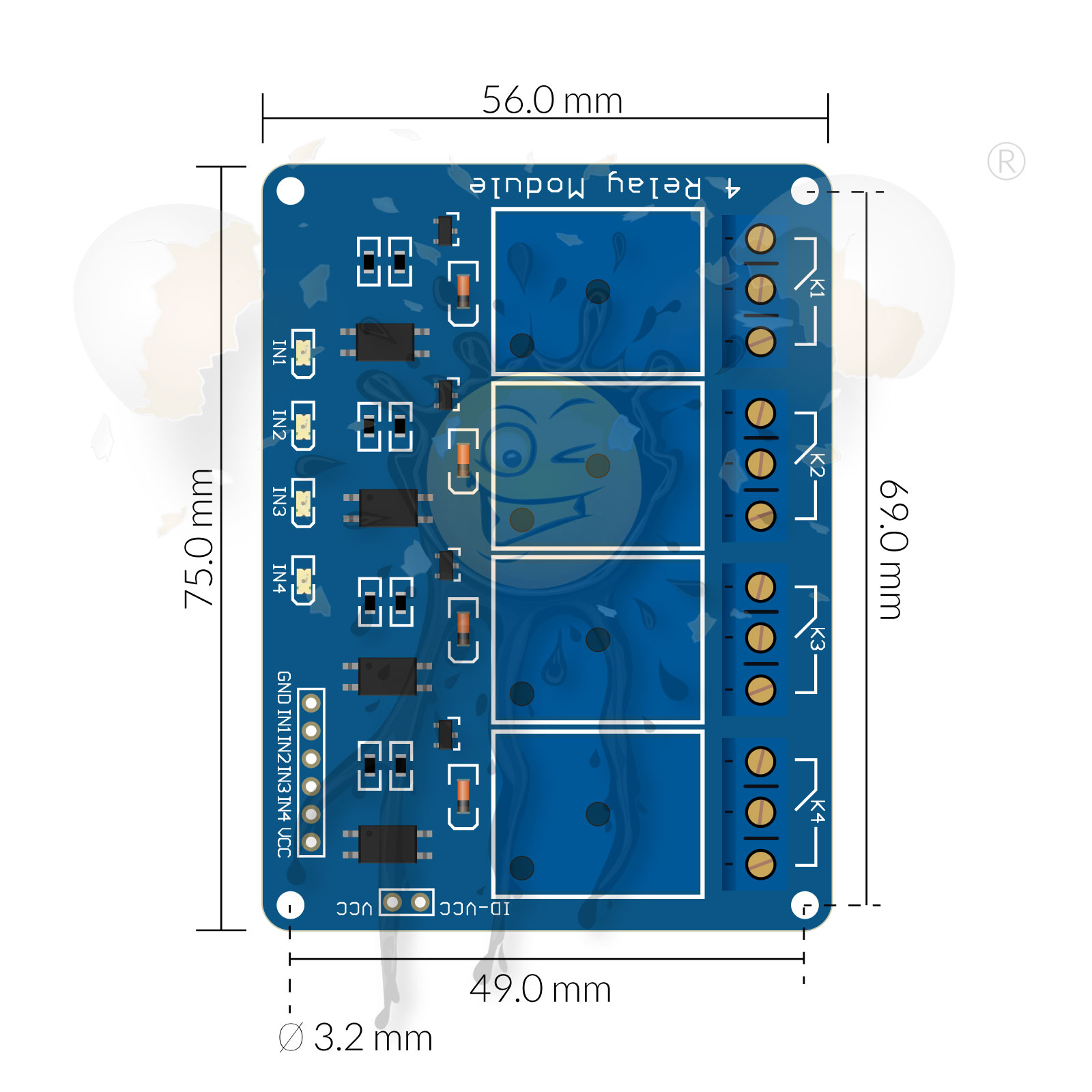

4 Channel Relais Modul Dimensions © androegg

4 Kanal 5 Volt Relais Modul schaltet

• Wechselspannungen bis zu
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• Gleichspannungen bis zu
  30V max. 10A

mit integriertem Optokoppler

In Kombination mit einem ESP8266 empfiehlt sich unser Logik Level Konverter.

4 Channel 5 Volt Relais switches

• AC Voltage up to
  250V / 50Hz. max. 10A
  125V / 60Hz.
  max. 10A
• DC Voltage up to
  30V max. 10A

with integrated Optocoupler

In Combination with an ESP8266 our Logik Level Converter is recomended.

4 Channel Relay Module Features:

• Coil Voltage 5V
• Coil Sensitivity 0.36W
• CCC Rating 250 VAC/10A 30VDC/10A
• UL/CUL Rating 125VAC/10A 28VDC/10A
• Nominal Current 71.4mA each Relay
• Coil Resistance 70 (Ω) ±10%
• Power Consumption 0.36W each Relay
