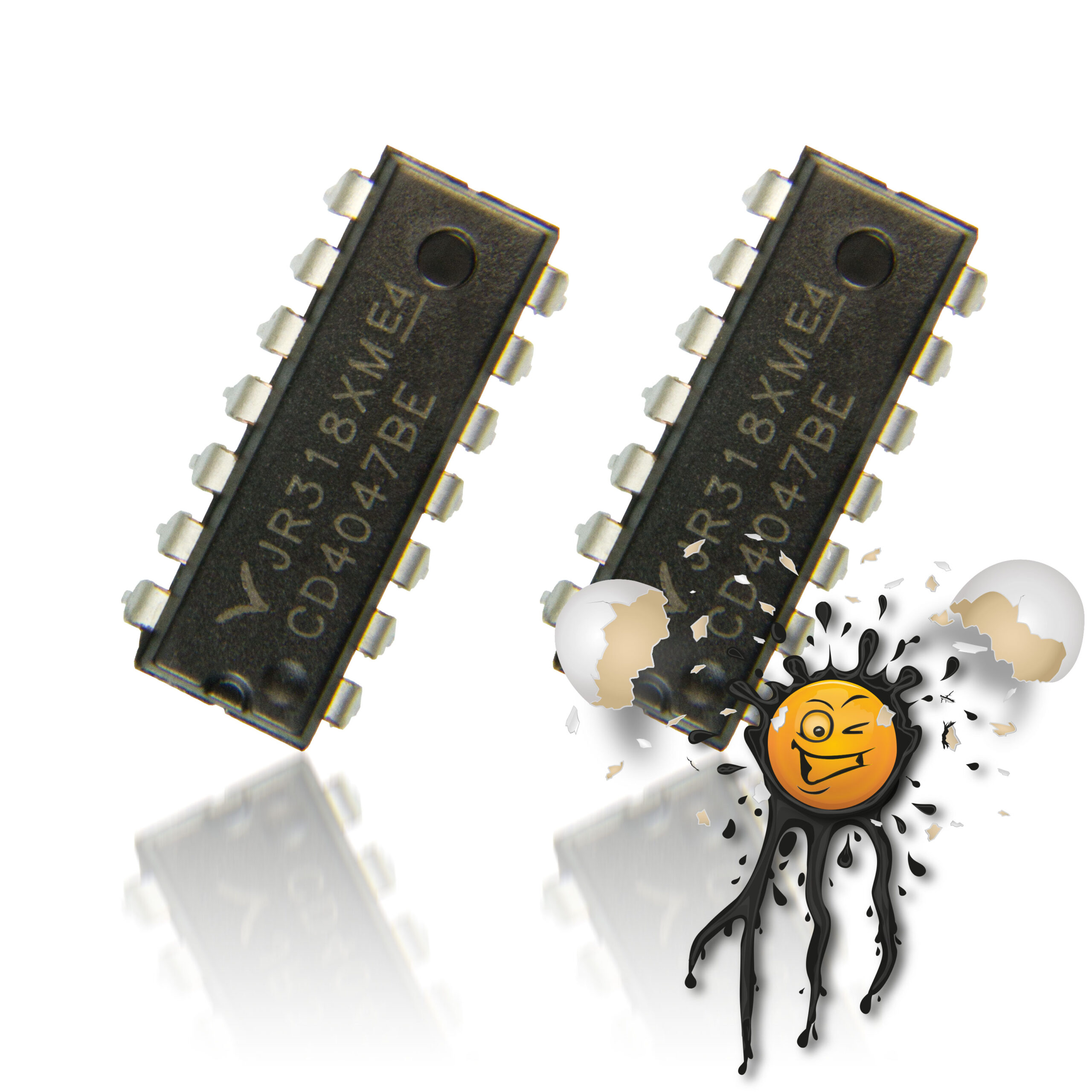

2 x CD4047BE low power Monostable/Astable Multivibrator DIP14 IC

Versand kostenlos innerhalb Deutschland

Kategorie: IC Integrierte Schaltung

Beschreibung
Bewertungen (0)

2 x CD4047BE low power Monostable/Astable Multivibrator DIP14 IC

2 pcs. CD4047 CMOS low power monostable multivibrator © androegg

2 Stück CD4047B DIP14 Multivibrator IC.

CD4047 CMOS Multivibrator IC

2 pcs. CD4047B Monostable/Astable Multivibrator IC.

CD4047 CMOS Multivibrator IC

CD4047BE Features:

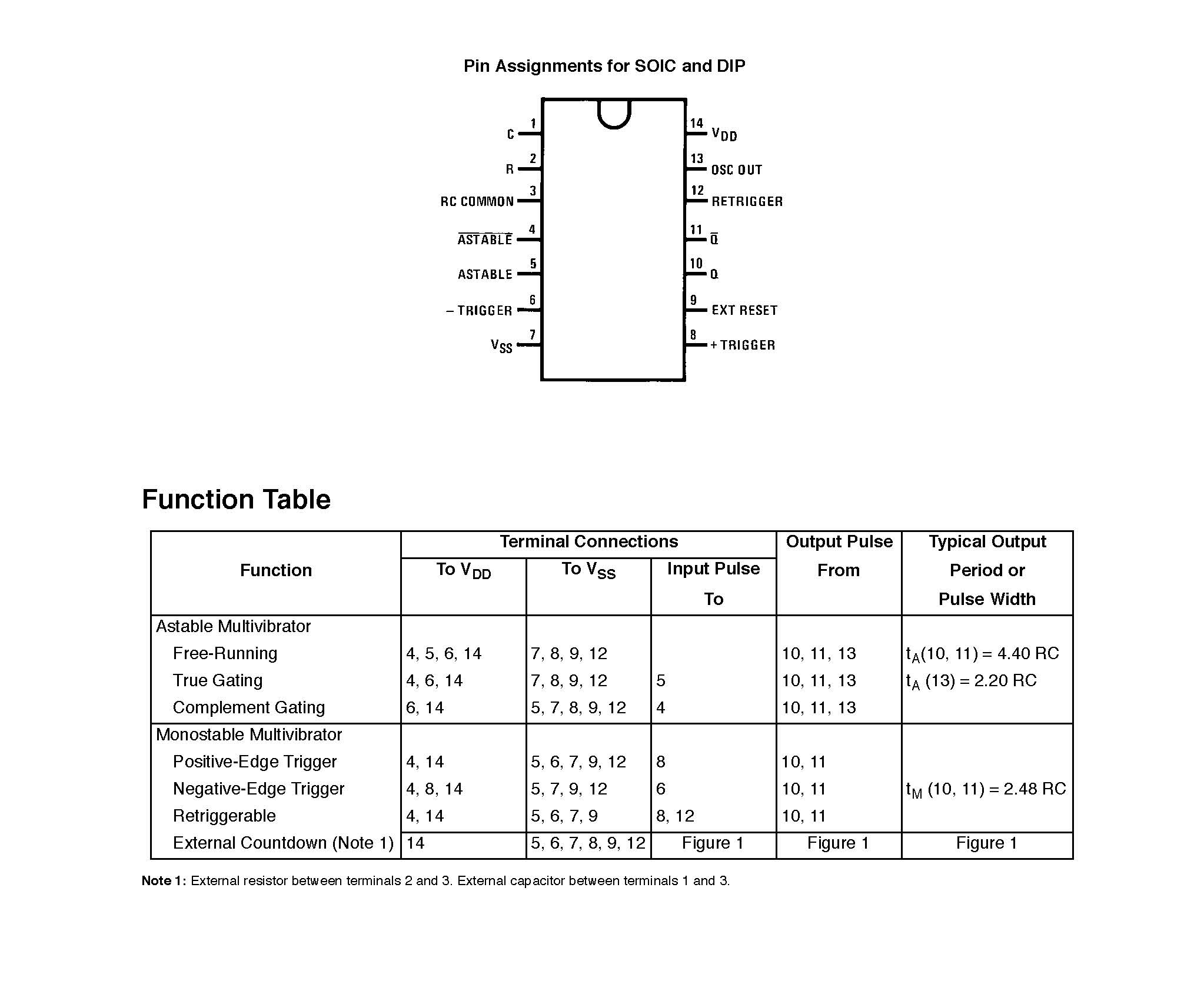

Pin Name	Pin #	Description
C	1	Can be connected to an external capacitor
R	2	Can be connected to an external resistor
R-C COMMON	3	Common pin to connect with resistor and capacitor
ASTABLE BAR	4	Set to Low when used in astable mode
ASTABLE	5	Set to high when used in astable mode
-TRIGGER	6	High to Low transition needs to be applied when used in monostable mode
VSS	7	Ground Pin
+TRIGGER	8	Low to High transition needs to be applied when used in monostable mode.
EXT RESET	9	An external reset signal can be provided to this pin.
Q	10	Generates high output.
Q BAR	11	Provides an inverse output of pin 10
RETRIGGER	12	Used to simultaneously retriggering the pins 6 and 8
OSC OUT	13	Generated Oscillated output
VDD	14	Voltage Supply Pin
