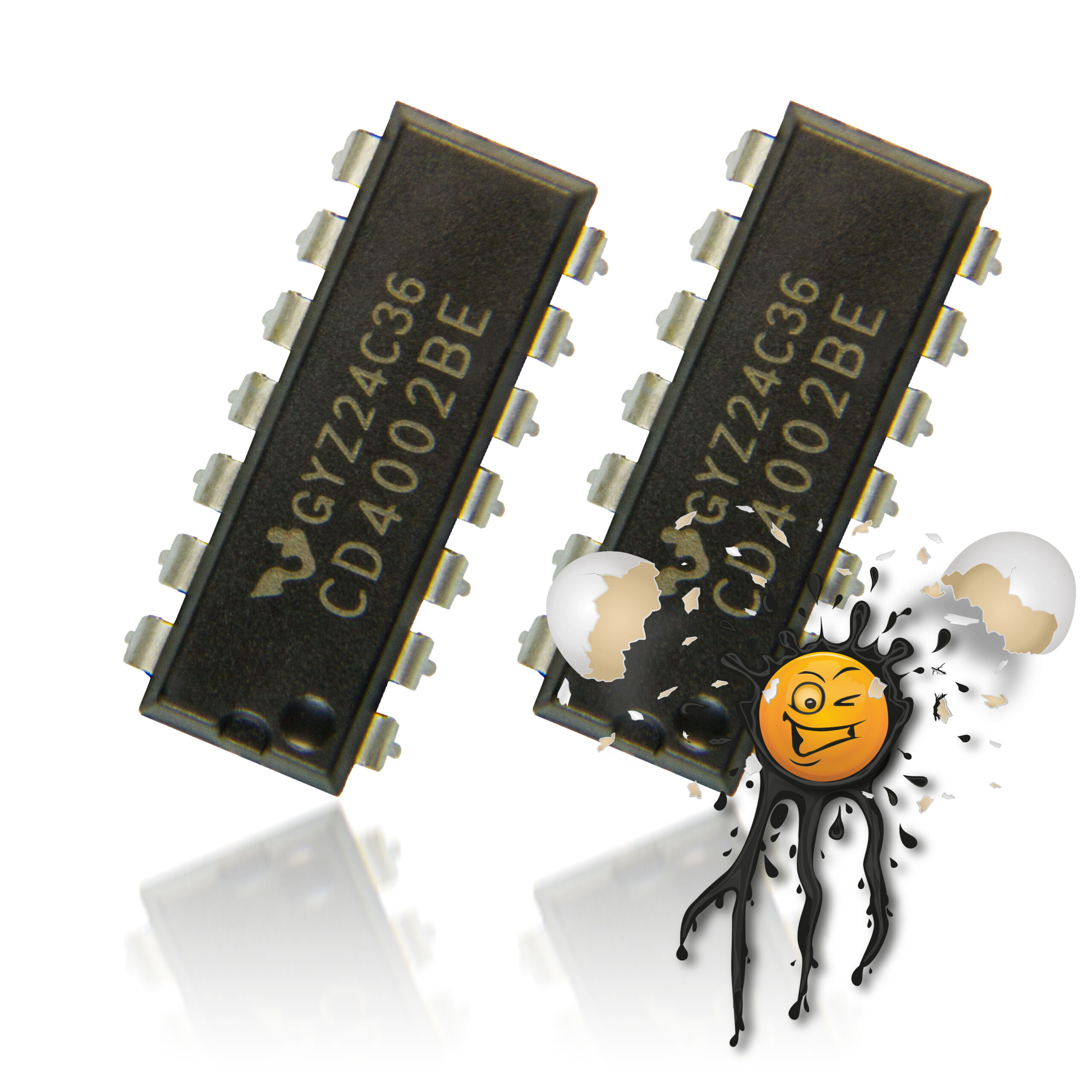

2 x CD4002BE 2 Stufen NOR Logikgatter DIP14 IC

Name: 2 x CD4002BE 2 Stufen NOR Logikgatter DIP14 IC - DIE SUPER-SPAR-PAKETE SIND WIEDER DA!
Price: 2.99 EUR
Availability: InStock

2,99 €

2 Stück CD4002BE 2 Stufen NOR Logikgatter DIP14 IC

Versand kostenlos innerhalb Deutschland

2 x CD4002BE 2 Stufen NOR Logikgatter Multiplier Divider 4-input NOR gates DIP14 IC

2 pcs. CD4002 Dual 4 input NOR Logic Gates IC © androegg

2 Stück CD4002BE DIP14 NOR 2 Stufen Logikgatter IC.

CD4002 2 Stufen NOR Gatter IC

2 pcs. CD4002 4 input NOR Logic Gates IC.

CD4002 2 stage Nor gates IC

Pin Name	Pin #	Type	Description
VDD	14	Power	Supply Voltage (+3 to +15V)
GND	7	Power	Ground (0V)
A1 to A2	2, 12	Input	Inputs A of the two NOR gates
B1 to B2	3, 11	Input	Inputs B of the two NOR gates
C1 to C2	4, 10	Input	Inputs C of the two NOR gates
D1 to D2	5, 9	Input	Inputs D of the two NOR gates
Q1 to Q2	1, 13	Output	Outputs from the two NOR gates
