1S 18650 26650 LiPo Lithium-Polymer DW01-A 3,7V HX-1S BMS Laderegler 10A

1S 18650 26650 LiPo Lithium-Polymer DW01-A 3,7V HX-1S BMS Laderegler Charger Modul 10A Lithium Battery

1S LiPo Lithium-Polymer Battery Charger 10A© androegg

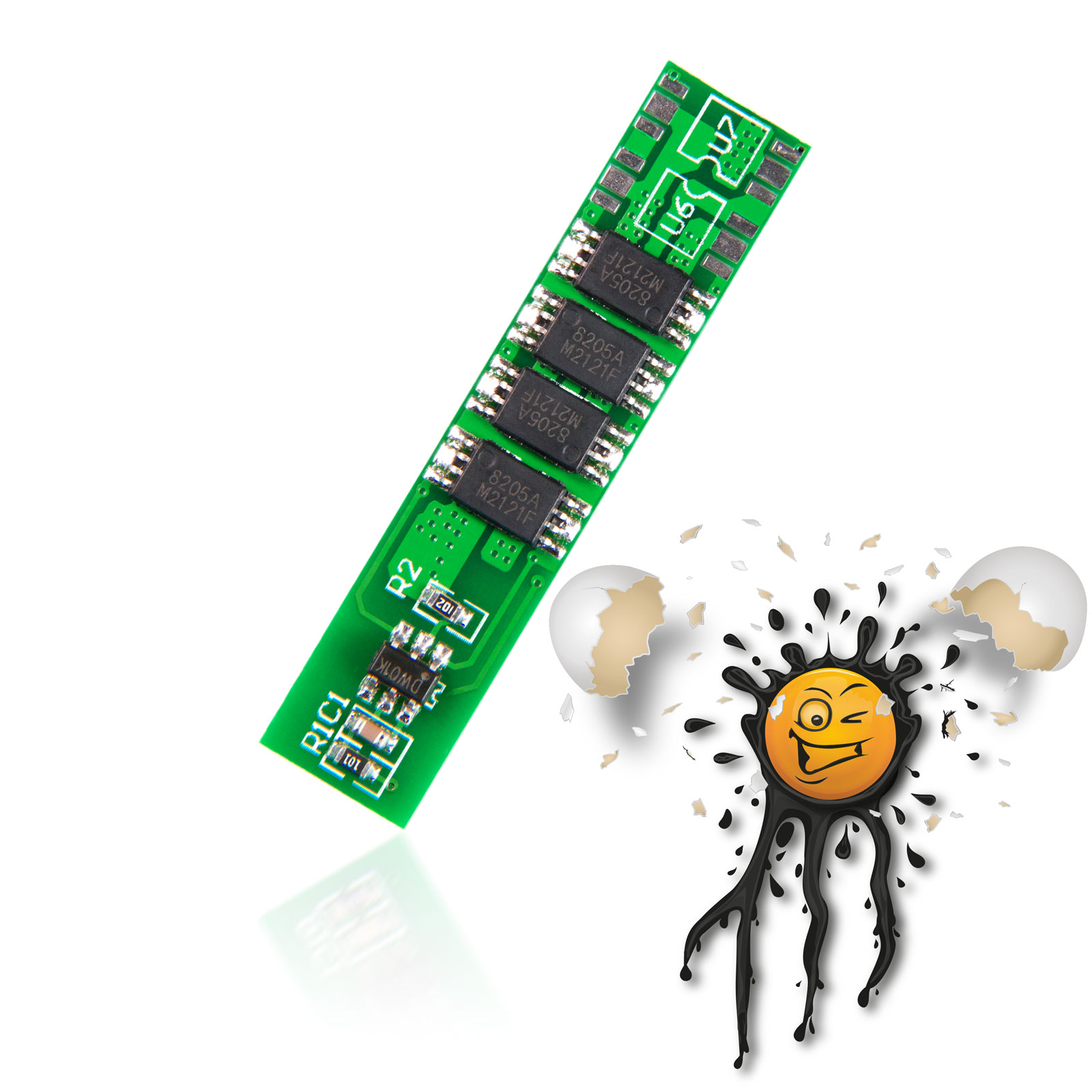

• 10A Version DW01-A Laderegeler in Kombination mit 4 Stück 8205A Mosfet

LIPO LITHIUM-POLYMER Akku Laderegler Modul

Das 1S Laderegler Modul eignet sich für LiPo Lithium-Polymer 3,7V Akkus.

1S 3.7V LiPo Lithium-Polymer Battery Charger Modul available

• 10A Version DW01-A Charger Module in Combination with 4 pcs. 8205A Mosfet

LIPO LITHIUM-POLYMER Charger Module

The Charger Module supports LiPo Lithium-Polymer 3.7V Batteries.

1S LiPo Lithium-Polymer DW01A Charger Module Features:

• Low supply current
• Low standby current
• built in 3 section over current detection
• Overcharge detection voltage: 3.75±0.050 V
• Overcharge release voltage: 3.75±0.05 V
• Over-discharge detection voltage: 2.10±0.10 V
• Short circuit detection / delay self recovery
• Mos controlled battery charge and discharge
