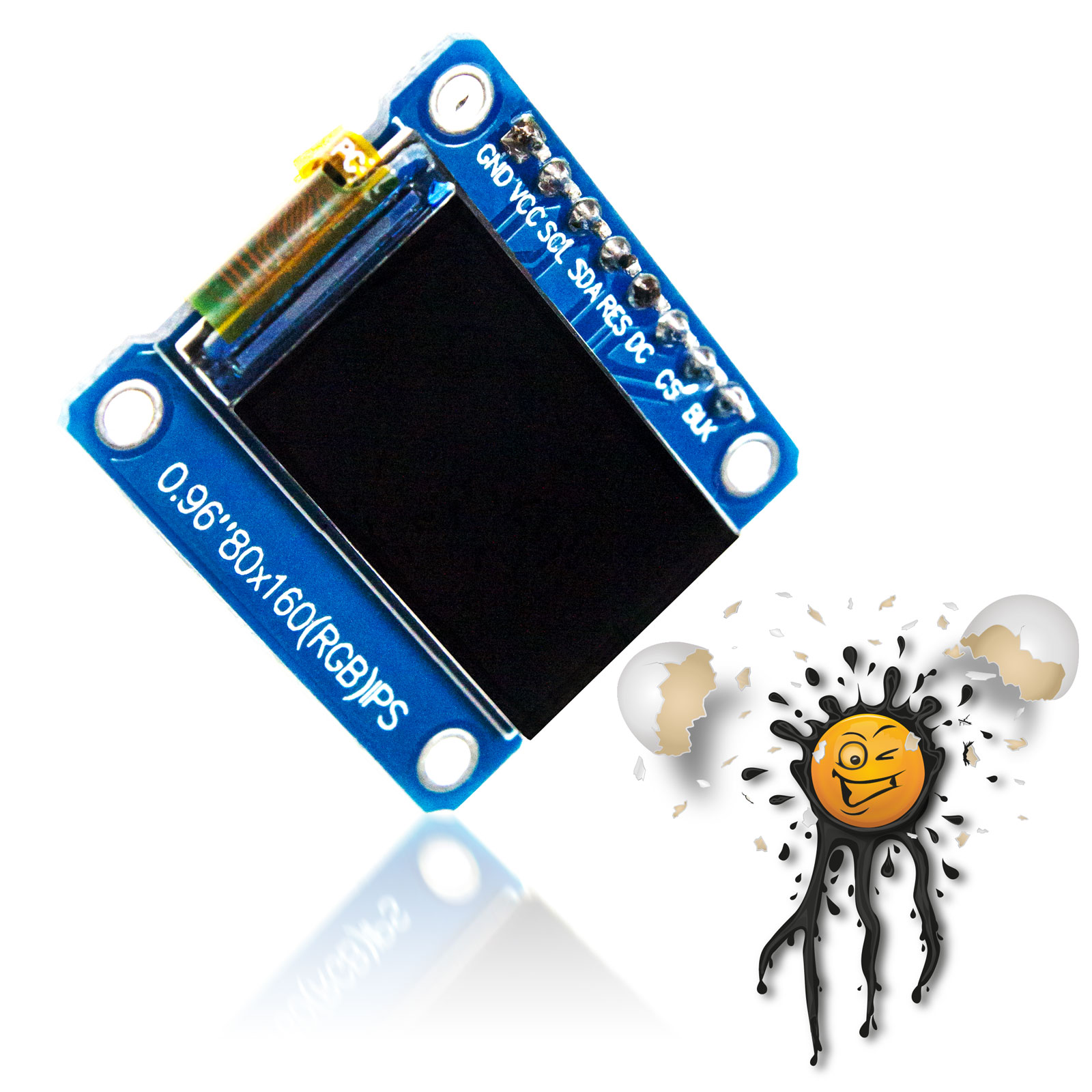

0.96″ SPI Vollfarben Full Color LCD Display 80×160

0.96″ Vollfarben Full Color LCD Display 80×160 SPI ST7735S 3,3V Arduino ESP8266 ARM

0.96 inch full color LCD Display 80 x 160 © androegg

Full Color SPI LCD Display © androegg

Das 0,96 inch Vollfarben Display verfügt übere eine SPI Schnittstelle und unterstützt MCU’s wie beispielsweise

• Arduino
  UNO R3
  Mega2560
  Leonardo usw.

• ESP8266
• ESP8285
• ESP32
• ARM
• Raspberry
• uvm.

Das 0,96 inch Vollfarben Display verfügt über eine RGB 80 x 160 Auflösung.

0,96 inch Vollfarben Anzeige

Das 0,96 inch Vollfarben Anzeigenmodul verfügt über einen integrierten ST7735S Grafik Treiber IC.

The 0.96 inch Full Color Display is based on SPI interface and supports devices such as

• Arduino
  UNO R3
  Mega2560
  Leonardo usw.

• ESP8266
• ESP8285
• ESP32
• ARM
• Raspberry
• etc.

The 0.96 full color display supports a rgb resolution 80 x 160.

0.96 inch full color Display

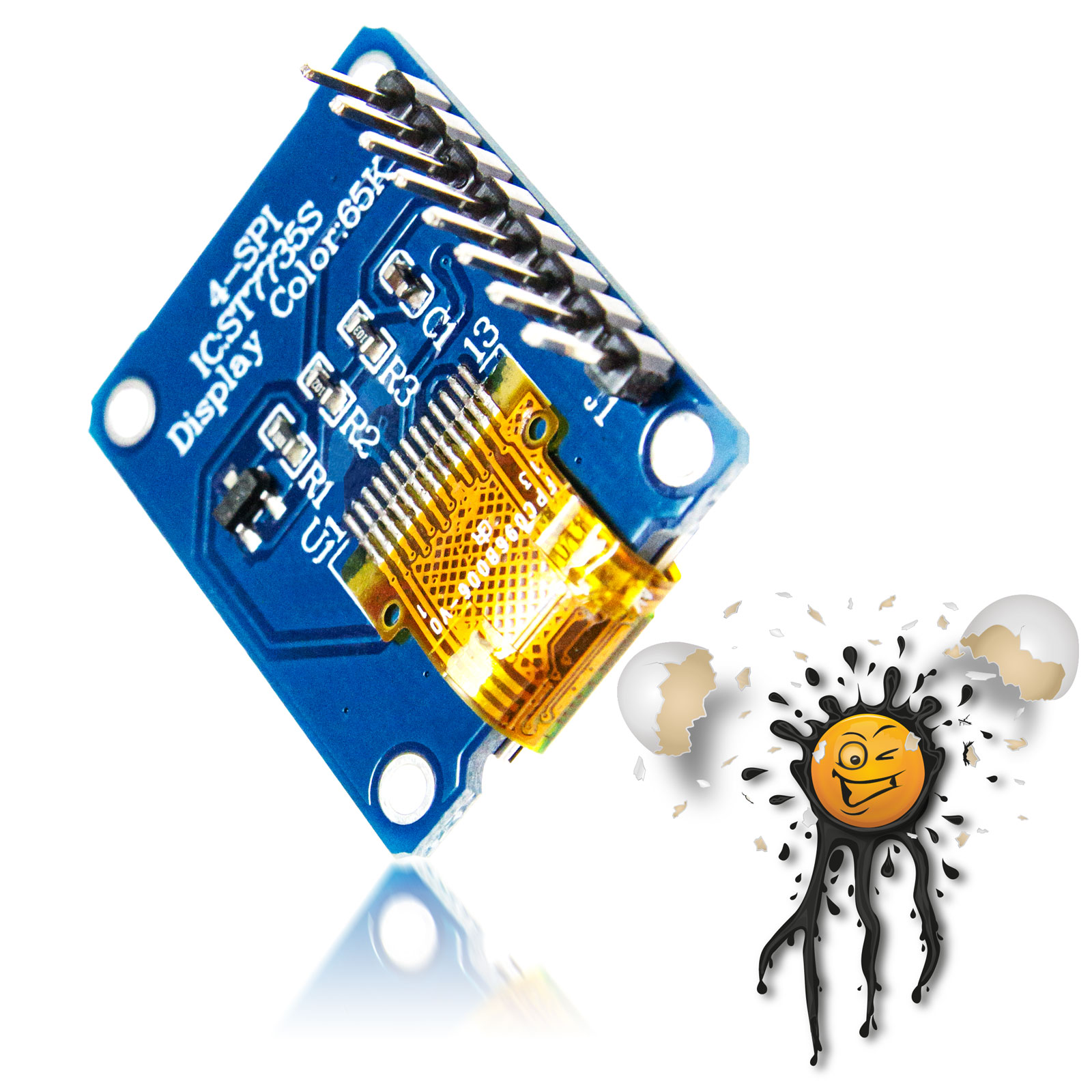

The o.96 inch full color Display has an integrated ST7735S Driver IC.

0.96 inch full color Display Features:

• Operating voltage: 3.3V
• Interface: SPI
• Driver IC: ST7735S integr.
• Display Mode: black IPS
• Resolution: rgb 80 x 160
• Display size: 0.96 inch
• LCD active area: 10.8 x 21.7mm
• Dimensions: 24 x 30 x 3mm
• Pin Out
  1 GND Ground
  2 VCC Power 3.3V
  3 SCL Serial clock pin.
  4 SDA Serial data input
  5 RES LCM Reset pin This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.
  6 DC Data/Command Control
  7 CS Chip Select
  8 BLK Backlight control pin
